Elbow Adaptors

Adaptors & Fittings Air Brake Push-in Fittings C-Truck 9000 Series

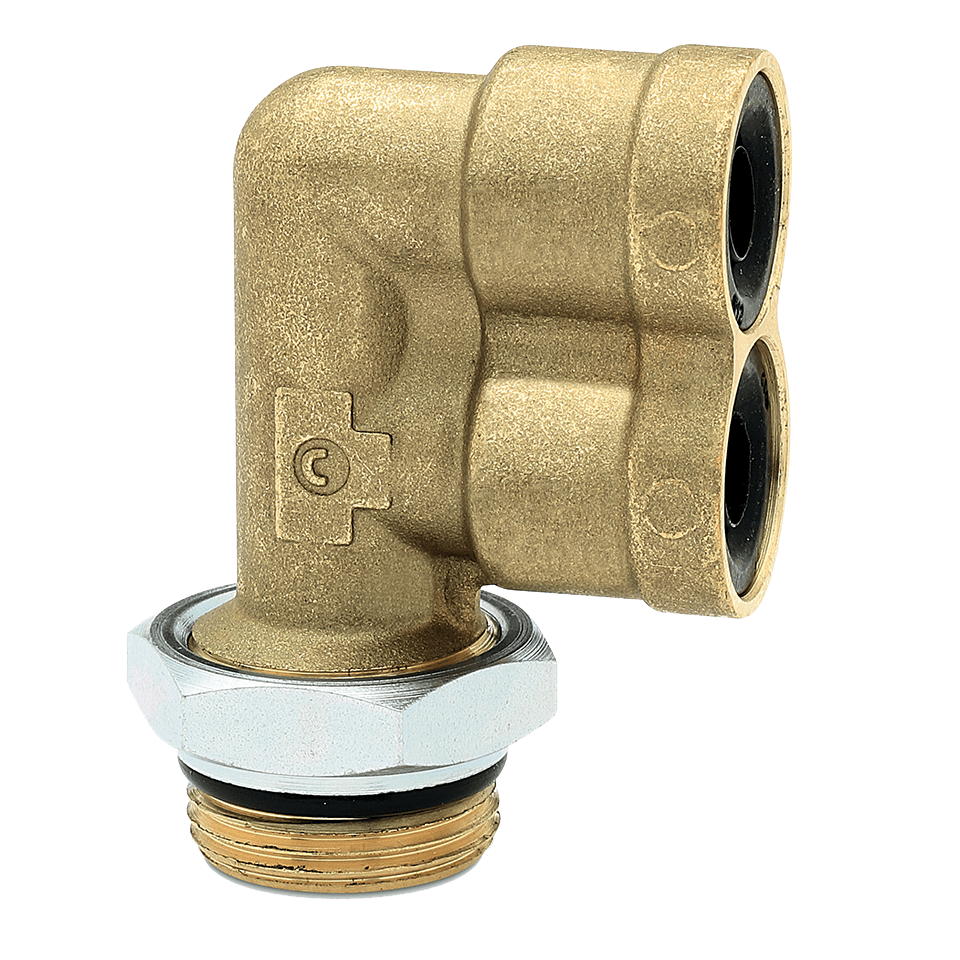

Double Push in, Male, Metric
  • Technical specs
Part number Variation name Thread size Outside diameter in mm
9402-12-M16 Double Push in, Male, Metric M16 x 1.5 12
9402-12-M22 Double Push in, Male, Metric M22 x 1.5 12
9500-05-02 Male, NPT 1/8" 8
9500-6-02 Male, NPT 1/8" 6
9502-10-M12 Male, Metric M12 x 1.5 10
9502-10-M16 Male, Metric M16 x 1.5 10
9502-10-M22 Male, Metric M22 x 1.5 10
9502-10/7-M12 Male, Metric M12 x 1.5 10/7
9502-10/7-M16 Male, Metric M16 x 1.5 10/7
9502-10/7-M22 Male, Metric M22 x 1.5 10/7
9502-12-M12 Male, Metric M12 x 1.5 12
9502-12-M16 Male, Metric M16 x 1.5 12
9502-12-M22 Male, Metric M22 x 1.5 12
9502-15-M16 Male, Metric M16 x 1.5 15
9502-15-M22 Male, Metric M22 x 1.5 15
9502-15/11-M16 Male, Metric M16 x 1.5 15/11
9502-15/11-M22 Male, Metric M22 x 1.5 15/11
9502-16-M22 Male, Metric M22 x 1.5 16
9502-16/12-M16 Male, Metric M16 x 1.5 16/12
9502-16/12-M22 Male, Metric M22 x 1.5 16/12
9502-18-M22 Male, Metric M22 x 1.5 18
9502-6-M10 Male, Metric M10 x 1 6
9502-6-M12 Male, Metric M12 x 1.5 6
9502-6-M16 Male, Metric M16 x 1.5 6
9502-6-M22 Male, Metric M22 x 1.5 6
9502-8-M10 Male, Metric M10 x 1 8
9502-8-M12 Male, Metric M12 x 1.5 8
9502-8-M14 Male, Metric M14 x 1.5 8
9502-8-M16 Male, Metric M16 x 1.5 8
9502-8-M22 Male, Metric M22 x 1.5 8
