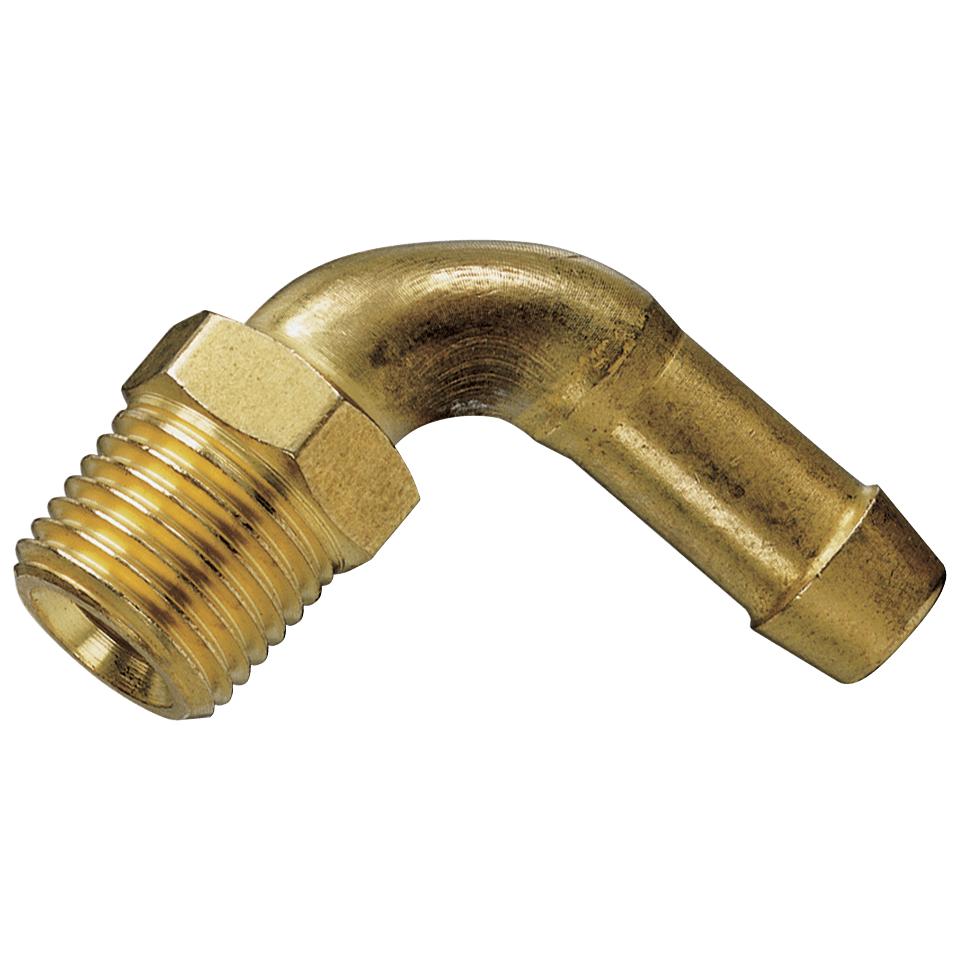

Elbows
Your item(s) have been added to your shopping basket
Elbows
- Technical specs
| Part number | Variation name | Thread size | To suit metric internal diameter hose |
|---|---|---|---|
| 600-1008 | Male Thread, BSPT x Hose Tail | 1/8" | 8 |
| 600-1306 | Male Thread, BSPT x Hose Tail | 1/4" | 6 |
| 600-1308 | Male Thread, BSPT x Hose Tail | 1/4" | 8 |
| 600-1310 | Male Thread, BSPT x Hose Tail | 1/4" | 10 |
| 600-1708 | Male Thread, BSPT x Hose Tail | 3/8" | 8 |
| 600-1710 | Male Thread, BSPT x Hose Tail | 3/8" | 10 |
| 628-1006 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 1/8" | 6 |
| 628-1305 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 1/4" | 5 |
| 628-1306 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 1/4" | 6 |
| 628-1308 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 1/4" | 8 |
| 628-1310 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 1/4" | 10 |
| 628-1706 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 3/8" | 6 |
| 628-1708 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 3/8" | 8 |
| 628-1710 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 3/8" | 10 |
| 628-2110 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 1/2" | 10 |
| 628-2112 | Coned Seat, Swivel Female Thread, BSPP x Hose Tail | 1/2" | 12 |
| EHT-12-10 | Male Thread, BSPT x Hose Tail | 1/2" | 3/8" (10mm) |
| EHT-12-13 | Male Thread, BSPT x Hose Tail | 1/2" | 1/2" (13mm) |
| EHT-12-8 | Male Thread, BSPT x Hose Tail | 1/2" | 5/16" (8mm) |
| EHT-14-10 | Male Thread, BSPT x Hose Tail | 1/4" | 3/8" (10mm) |
| EHT-14-13 | Male Thread, BSPT x Hose Tail | 1/4" | 1/2" (13mm) |
| EHT-14-6 | Male Thread, BSPT x Hose Tail | 1/4" | 1/4" (6mm) |
| EHT-14-8 | Male Thread, BSPT x Hose Tail | 1/4" | 5/16" (8mm) |
| EHT-18-10 | Male Thread, BSPT x Hose Tail | 1/8" | 3/8" (10mm) |
| EHT-18-6 | Male Thread, BSPT x Hose Tail | 1/8" | 1/4" (6mm) |
| EHT-18-8 | Male Thread, BSPT x Hose Tail | 1/8" | 5/16" (8mm) |
| EHT-38-10 | Male Thread, BSPT x Hose Tail | 3/8" | 3/8" (10mm) |
| EHT-38-13 | Male Thread, BSPT x Hose Tail | 3/8" | 1/2" (13mm) |
| EHT-38-6 | Male Thread, BSPT x Hose Tail | 3/8" | 1/4" (6mm) |
| EHT-38-8 | Male Thread, BSPT x Hose Tail | 3/8" | 5/16" (8mm) |
| FET14-38 | Female Thread, BSPP x Hose Tail | 1/4" | 3/8" (10mm) |
| FET14-516 | Female Thread, BSPP x Hose Tail | 1/4" | 5/16" (8mm) |
| FET38-12 | Female Thread, BSPP x Hose Tail | 3/8" | 1/2" (13mm) |
| FET38-38 | Female Thread, BSPP x Hose Tail | 3/8" | 3/8" (10mm) |
