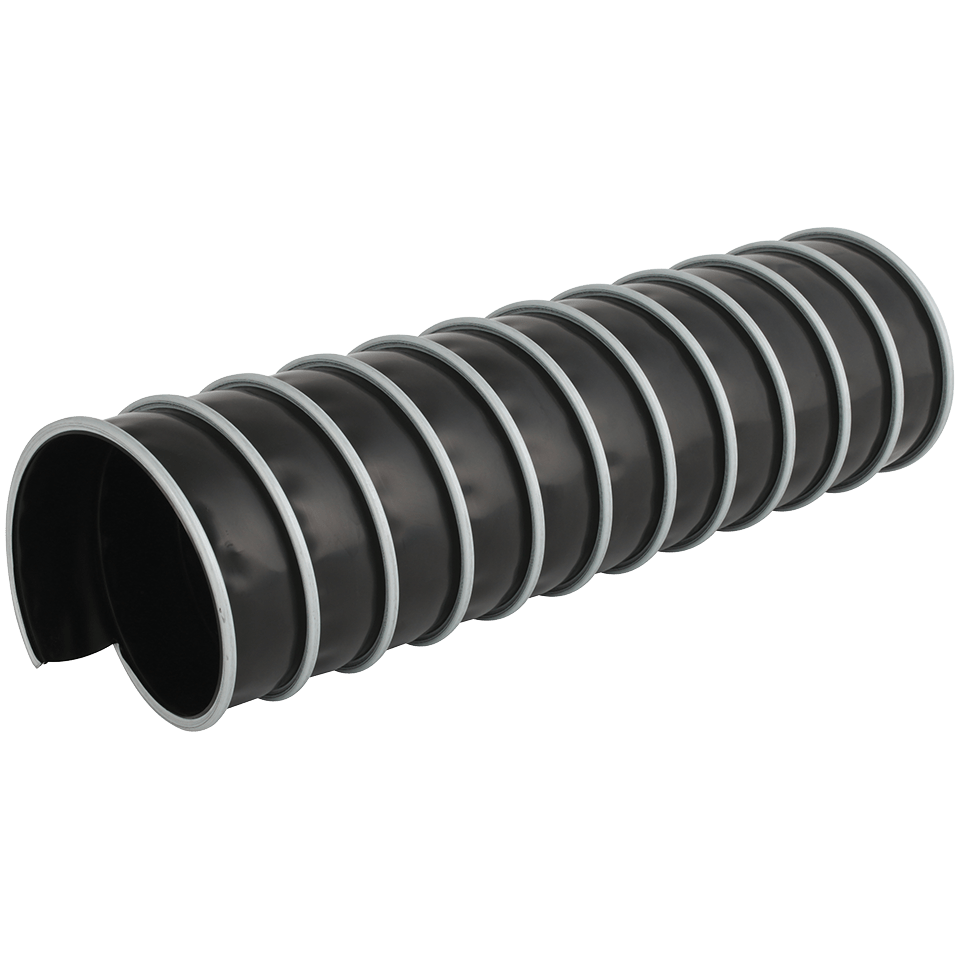

CP PE 457 EC

Hose, Tubing & Couplings ATEX Compliant Industrial Ducting
Lightweight, Electrically Conductive, Clamp Profile, 3 Metres
  • Technical specs
Part number Variation name Inside diameter mm Outside diameter in mm Max gauge pressure in bar Vacuum level in bar Weight per kilogram
457-0050-1003 Lightweight, Electrically Conductive, Clamp Profile, 3 Metres 50 62 0.490 0.270 0.600
457-0075-1003 Lightweight, Electrically Conductive, Clamp Profile, 3 Metres 75 87 0.380 0.160 0.860
457-0100-1003 Lightweight, Electrically Conductive, Clamp Profile, 3 Metres 100 112 0.225 0.085 0.820
457-0125-1003 Lightweight, Electrically Conductive, Clamp Profile, 3 Metres 125 137 0.195 0.060 1.000
457-0150-1003 Lightweight, Electrically Conductive, Clamp Profile, 3 Metres 150 162 0.120 0.035 0.820
457-0200-1003 Lightweight, Electrically Conductive, Clamp Profile, 3 Metres 200 212 0.100 0.020 0.800
