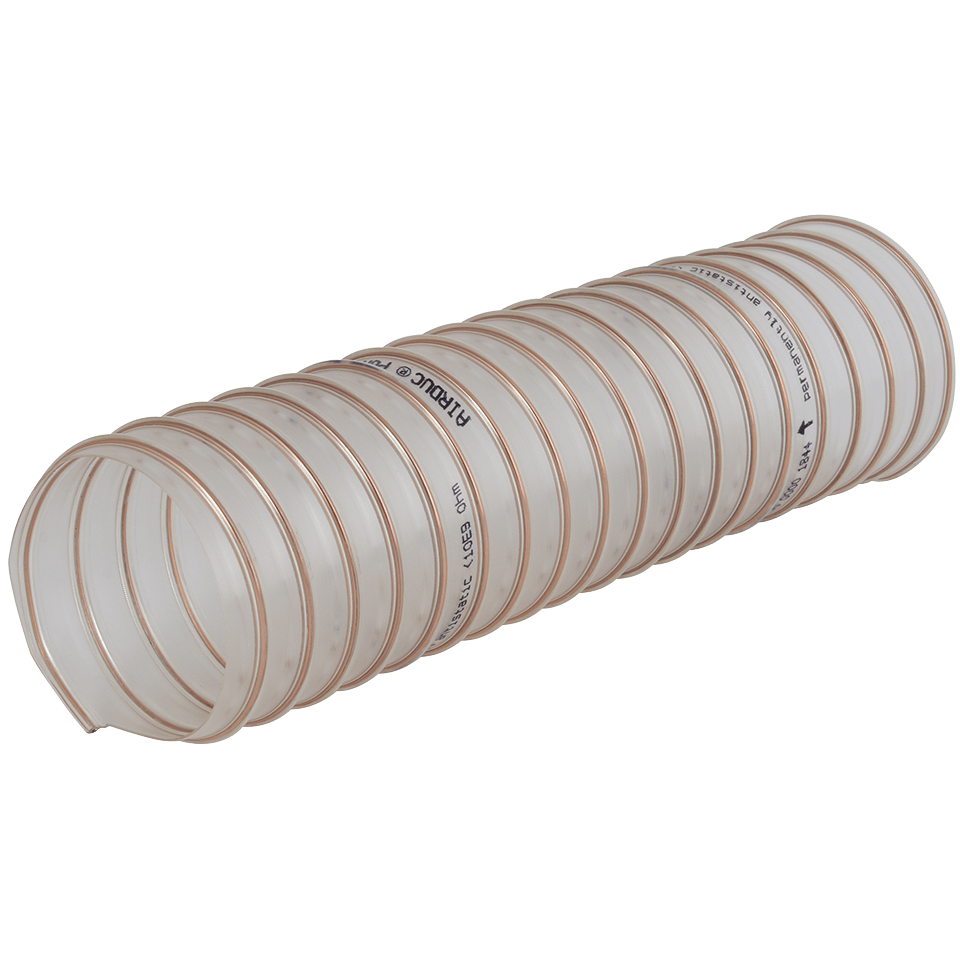

AIRDUC PUR 350 FOOD AS

Hose, Tubing & Couplings Food Grade PUR Ducting
Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres
  • Technical specs
Part number Variation name Inside diameter mm Outside diameter in mm Max gauge pressure in bar Vacuum level in bar Weight per kilogram
350-0038-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 38 45 1.635 0.495 0.310
350-0050-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 50 57 1.250 0.380 0.400
350-0065-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 65 70 0.970 0.290 0.520
350-0075-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 75 82 0.840 0.175 0.590
350-0100-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 100 107 0.635 0.135 0.800
350-0125-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 125 132 0.510 0.110 0.980
350-0150-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 150 157 0.425 0.075 1.400
350-0160-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 160 167 0.400 0.070 1.500
350-0175-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 175 182 0.365 0.065 1.630
350-0200-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 200 207 0.320 0.055 1.860
350-0225-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 225 232 0.285 0.050 2.080
350-0250-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 250 257 0.255 0.045 2.310
350-0300-0000 Medium Weight, 0.7mm Wall, Anti-static, Food Grade, 10 Metres 300 307 0.215 0.035 2.770
