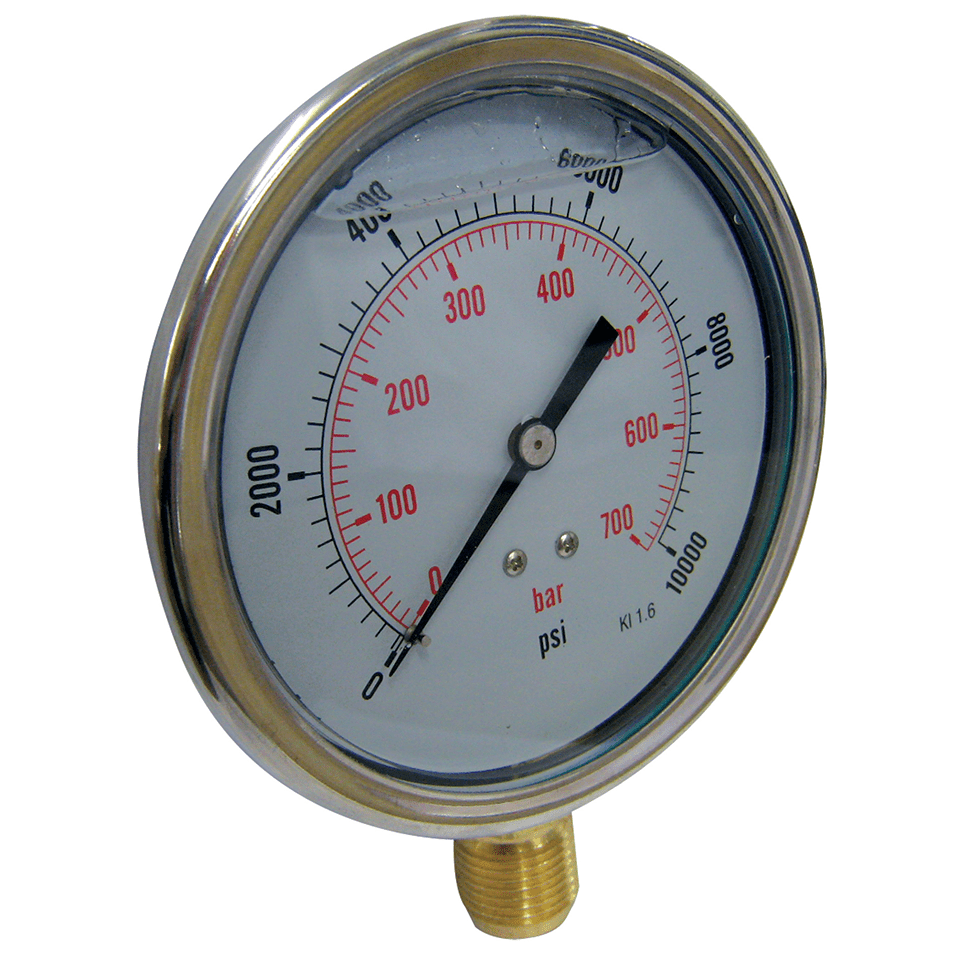

Bottom Entry Pressure Gauges

Hydraulics 100mm Pressure Gauges
1/2” BSP, 100mm Diameter
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm5581 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
9803-100 1/2” BSP, 100mm Diameter 100mm 0 to 7 G 1/2"
9803-1000 1/2” BSP, 100mm Diameter 100mm 0 to 70 G 1/2"
9803-10000 1/2” BSP, 100mm Diameter 100mm 0 to 700 G 1/2"
9803-15 1/2” BSP, 100mm Diameter 100mm 0 to 1 G 1/2"
9803-1500 1/2” BSP, 100mm Diameter 100mm 0 to 100 G 1/2"
9803-160 1/2” BSP, 100mm Diameter 100mm 0 to 11 G 1/2"
9803-200 1/2” BSP, 100mm Diameter 100mm 0 to 14 G 1/2"
9803-2000 1/2” BSP, 100mm Diameter 100mm 0 to 140 G 1/2"
9803-2500 1/2” BSP, 100mm Diameter 100mm 0 to 170 G 1/2"
9803-30 1/2” BSP, 100mm Diameter 100mm 0 to 2 G 1/2"
9803-300 1/2” BSP, 100mm Diameter 100mm 0 to 20 G 1/2"
9803-3000 1/2” BSP, 100mm Diameter 100mm 0 to 200 G 1/2"
9803-400 1/2” BSP, 100mm Diameter 100mm 0 to 28 G 1/2"
9803-4000 1/2” BSP, 100mm Diameter 100mm 0 to 280 G 1/2"
9803-500 1/2” BSP, 100mm Diameter 100mm 0 to 35 G 1/2"
9803-5000 1/2” BSP, 100mm Diameter 100mm 0 to 350 G 1/2"
9803-60 1/2” BSP, 100mm Diameter 100mm 0 to 4 G 1/2"
9803-600 1/2” BSP, 100mm Diameter 100mm 0 to 40 G 1/2"
9803-6000 1/2” BSP, 100mm Diameter 100mm 0 to 400 G 1/2"
9803-60C 1/2” BSP, 100mm Diameter 100mm -1 to 4 G 1/2"
9803-Cal Accessories for 100mm Bottom Entry Gauges
9803-CUFF Accessories for 100mm Bottom Entry Gauges
ACC16050 Accessories for 100mm Bottom Entry Gauges
