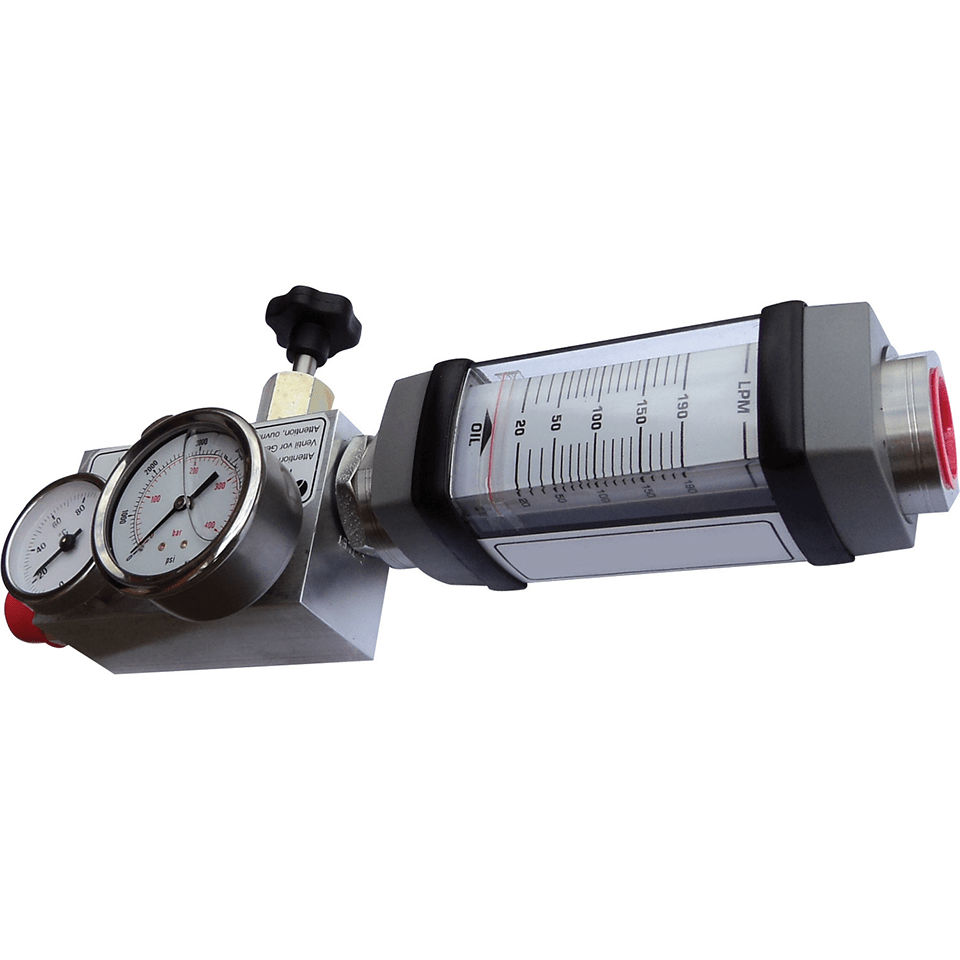

Flowmeter, 414 bar Max. Rated, Stainless Steel

Used to diagnose faults in hydraulic circuits, determine hydraulic horsepower and test for component wear such as hydraulic valve and cylinder leakage. Supplied in sturdy carry case with foam insert Technical Data: • Temperature range: 0 to +100°C • Pressure rating: (3:1 safety factor) Stainless steel: 400 bar maximum Aluminium: 240 bar maximum • Pressure drop: on request • Accuracy: ±2% of full scale • Repeatability: ±1% • Threads: BSPP, NPT and SAE available upon request • Test kit pressure gauge – glycerin fi lled: 0-400 bar (0-6000 psi) • Test kit load valve: pressure compensated balanced, 414 bar
Hydraulics Analogue Hydraulic Test Equipment
PR130, 0-10V Output
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm5661 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
HP.702.S.030.TKV PR130, 0-10V Output 0-400 3/4” BSP
HP.762.S.050.TKV PR130, 0-10V Output 0-400 1” BSP
