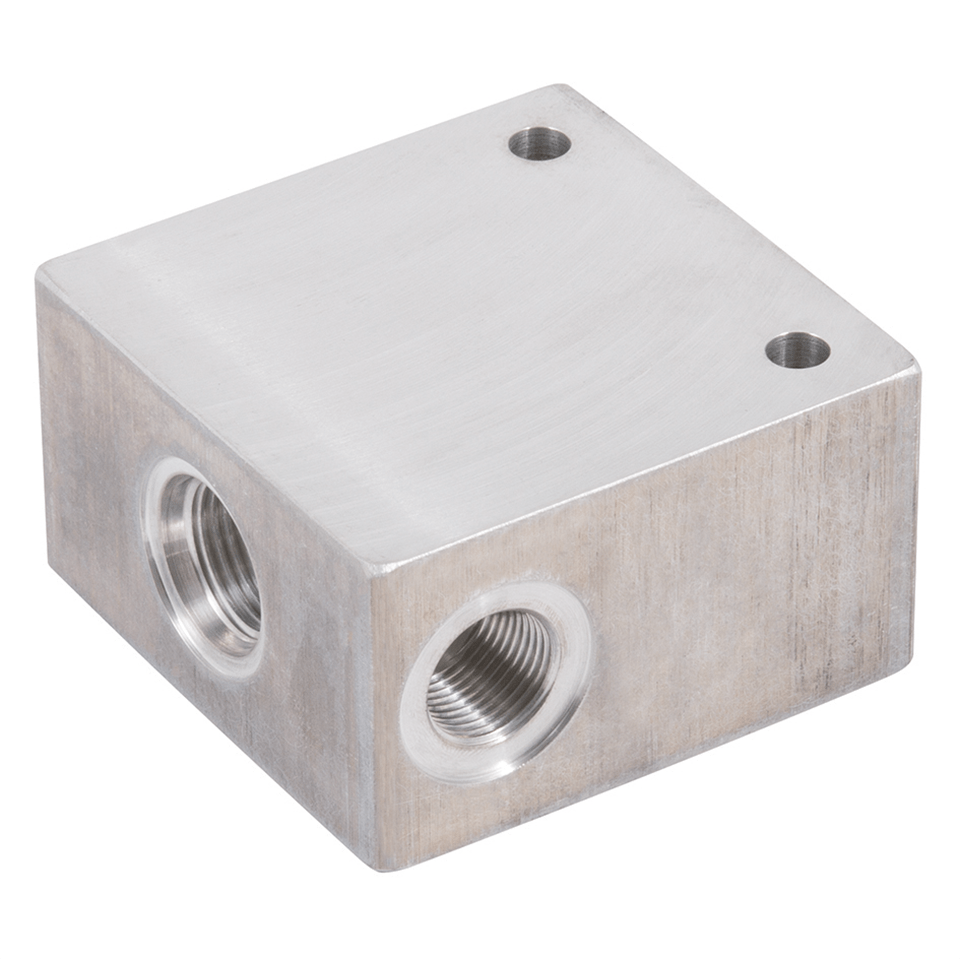

Cartridge Manifolds

Technical Features • In-line bodies designed to accommodate different cartridge valves and thus provide highly versatile solutions to hydraulic control functions • Different valve functions in the same body are possible due to standardised cavities and valve housings across a wide range of cartridge valves • Various cavities with SAE and ISO metric threads available • Connecting ports for pipes with SAE and BSPP threads available • Bodies are available in aluminium and steel. In the standard version, aluminium bodies are without surface treatment, steel bodies are zinccoated for 240 h protection according to ISO 9227 and cast iron bodies are phosphated • Cast iron body versions additionally feature a gauge port
