Poppet Type Cartridge Valves

Hydraulics Cartridge Valves

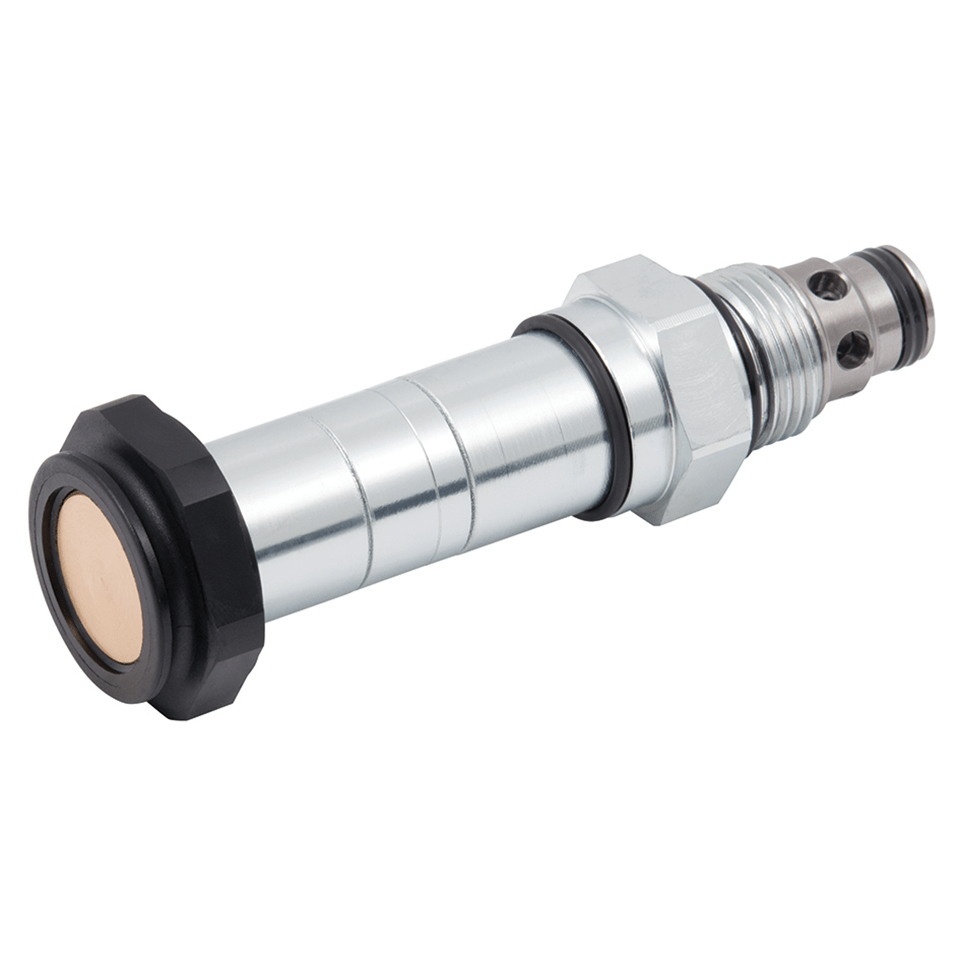

2/2 Directional Valves, Solenoid Operated, Piloted 3/4-16 UNF
Specifications
Technical Features: • Hardened precision parts • High flow capacity and leak-free closing • Normally open and normally closed double poppet versions available on request • Lightline design, 250 bar with reduced solenoid power for production cost saving • Normally open and normally closed versions • Wide range of manual overrides available • All ports may be fully pressurised • Coil interchangeability among SD*-A* product line • Standard version zinc-coated with surface protection according to ISO 9227 (240 h salt spray) Function: • Two-way, two-position, high pressure pilot-operated poppet valve • Screw-in cartridge design • Used mainly for on/off bidirectional control of fl ow to actuators with leakfree closing in one direction
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4687 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
SD3E-A2/L202 2/2 Directional Valves, Solenoid Operated, Piloted 3/4-16 UNF 30 Normally Open
SD3E-A2/L2L2 2/2 Directional Valves, Solenoid Operated, Piloted 3/4-16 UNF 30 Normally Closed
SD3E-B2/L202 2/2 Directional Valves, Solenoid Operated, Piloted 7/8-14 UNF 60 Normally Open
SD3E-B2/L2L2 2/2 Directional Valves, Solenoid Operated, Piloted 7/8-14 UNF 60 Normally Closed
