Turbine Flow Meters for Digital Datalogging Equipment

The HySense QT range (formerly known as RE3, 4 and 6) is an axial turbine fl ow rate meter. The turbine blade wheel is axially driven by the fl ow stream, rotating in proportion to the mean fl ow velocity. A non-contacting inductive pickup generates a pulse signal. These pulses are then directly converted into a fl ow measurement by the associate electronic instrumentation. An advantage of our fl ow measuring turbine are the integrated test points which enable additional measurements of pressure and temperature. • Developed for mineral oils • Allows bi-directional volume fl ow rate measurement • Supplied with pressure and temperature test points • Compact, high pressure design *1 to 10 l/min version still sold as QT100 series. **Value showing in brackets in fl ow range: without ISDS or inearisation. Output Signal: analog or frequency Viscosity Range: mm2/s (cSt) – 5-100 Error Limit of Reading: ±0.5% For QT510 additional ± 0.2% of fi nal value (error f/l-converter)
Hydraulics Digital Test Flow Meters

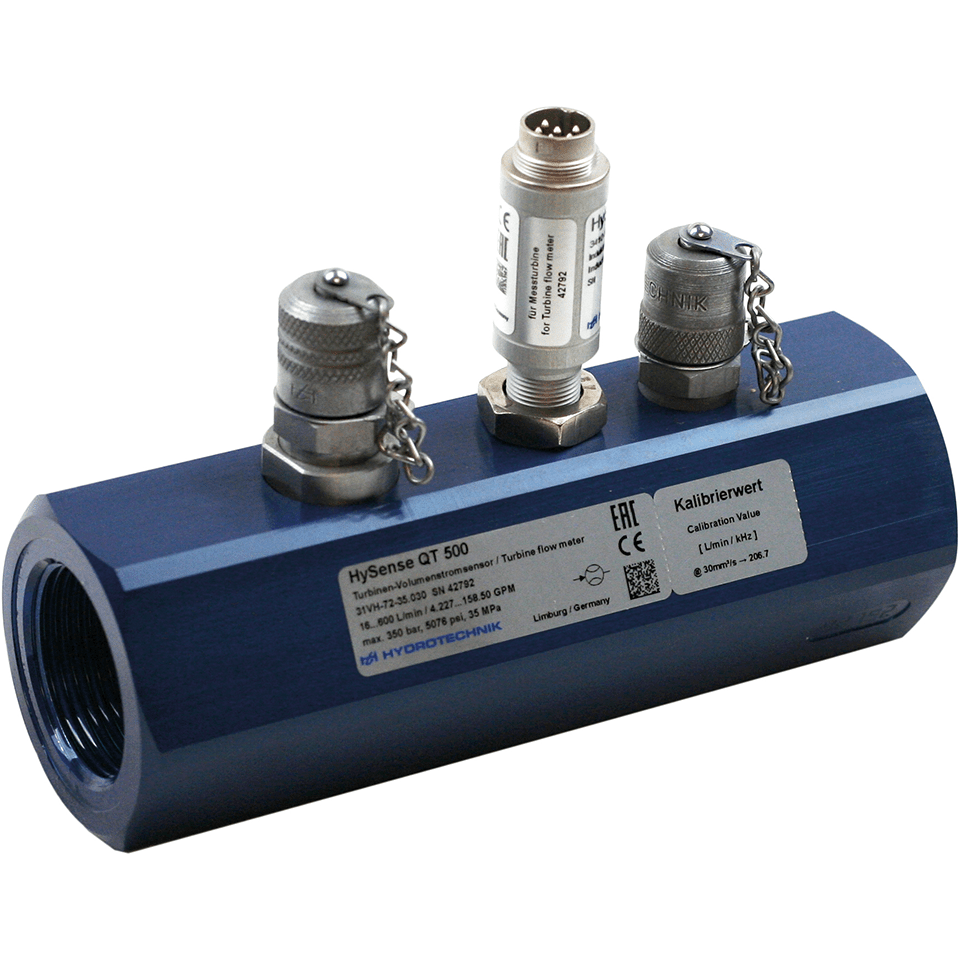

HySense QT500 Series, QT 510 (4-20mA)
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm5701 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
31G7-01-S-35.030 HySense QT500 Series, QT 510 (4-20mA) 0.68 420 1.0 to 10.0 42
31JH-70-35.030 HySense QT500 Series, QT 510 (4-20mA) 0.89 420 2 (7.5) to 75 42
31JH-71-35.030 HySense QT500 Series, QT 510 (4-20mA) 1.23 420 9 (15) to 300 42
31JH-72-35.030 HySense QT500 Series, QT 510 (4-20mA) 1.52 350 15 (25) to 600 35
31V7-01-S-35.030 HySense QT500 Series, QT 500 (Frequency) 0.63 420 1.0 to 10.0 42
31VH-70-35.030 HySense QT500 Series, QT 500 (Frequency) 0.79 420 2 (7.5 to 75 42
31VH-71-35.030 HySense QT500 Series, QT 500 (Frequency) 1.12 420 9 (15) to 300 42
31VH-72-35.030 HySense QT500 Series, QT 500 (Frequency) 1.38 350 15 (25) to 600 35
