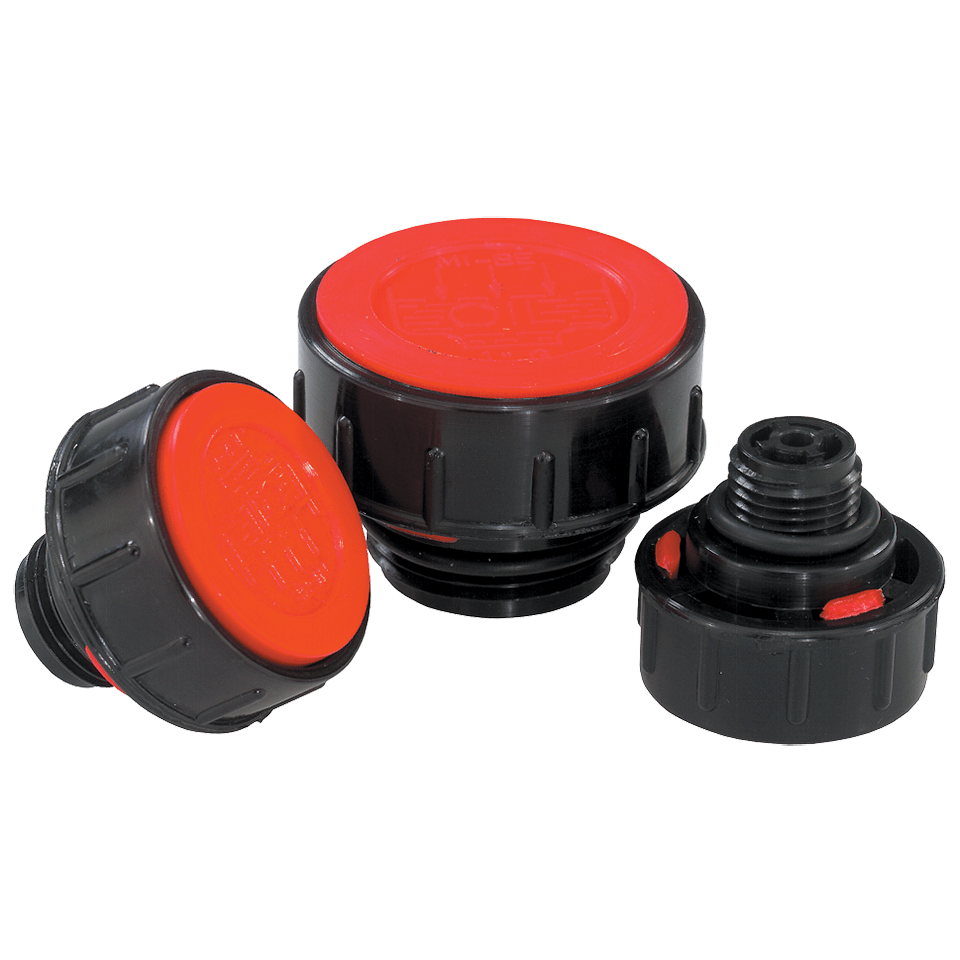

Vent Screws

• Material: thermoplastic polyamide 66 • Air fi lter: polyurethane foam • Fluid compatibility: mineral based oils and solvents
Hydraulics Hydraulic Accessories
With Oil Fill Symbol
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm5939 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
K5634136038 With Oil Fill Symbol 3/8”
K56341361615 With Oil Fill Symbol M16 x 1.5
K5634141012 With Oil Fill Symbol 1/2”
K56341411815 With Oil Fill Symbol M18 x 1.5
K56341412015 With Oil Fill Symbol M20 x 1.5
K56341412215 With Oil Fill Symbol M22 x 1.5
K5634147034 With Oil Fill Symbol 3/4”
K5634152100 With Oil Fill Symbol 1”
K5634163112 With Oil Fill Symbol 1.1/2”
K5634163114 With Oil Fill Symbol 1.1/4”
K5634236038 With Oil Fill Symbol & Filter 3/8”
K56342361615 With Oil Fill Symbol & Filter M16 x 1.5
K5634241012 With Oil Fill Symbol & Filter 1/2”
K56342411815 With Oil Fill Symbol & Filter M18 x 1.5
K56342412215 With Oil Fill Symbol & Filter M22 x 1.5
K5634247034 With Oil Fill Symbol & Filter 3/4”
K5634252100 With Oil Fill Symbol & Filter 1”
K5634263112 With Oil Fill Symbol & Filter 1.1/2”
K5634263114 With Oil Fill Symbol & Filter 1.1/4”
K563630012 With Splash Guard, Filter & Oil Symbol, BSPP 1/2"
K563630014 With Splash Guard, Filter & Oil Symbol, BSPP 1/4"
K563630038 With Splash Guard, Filter & Oil Symbol, BSPP 3/8"
