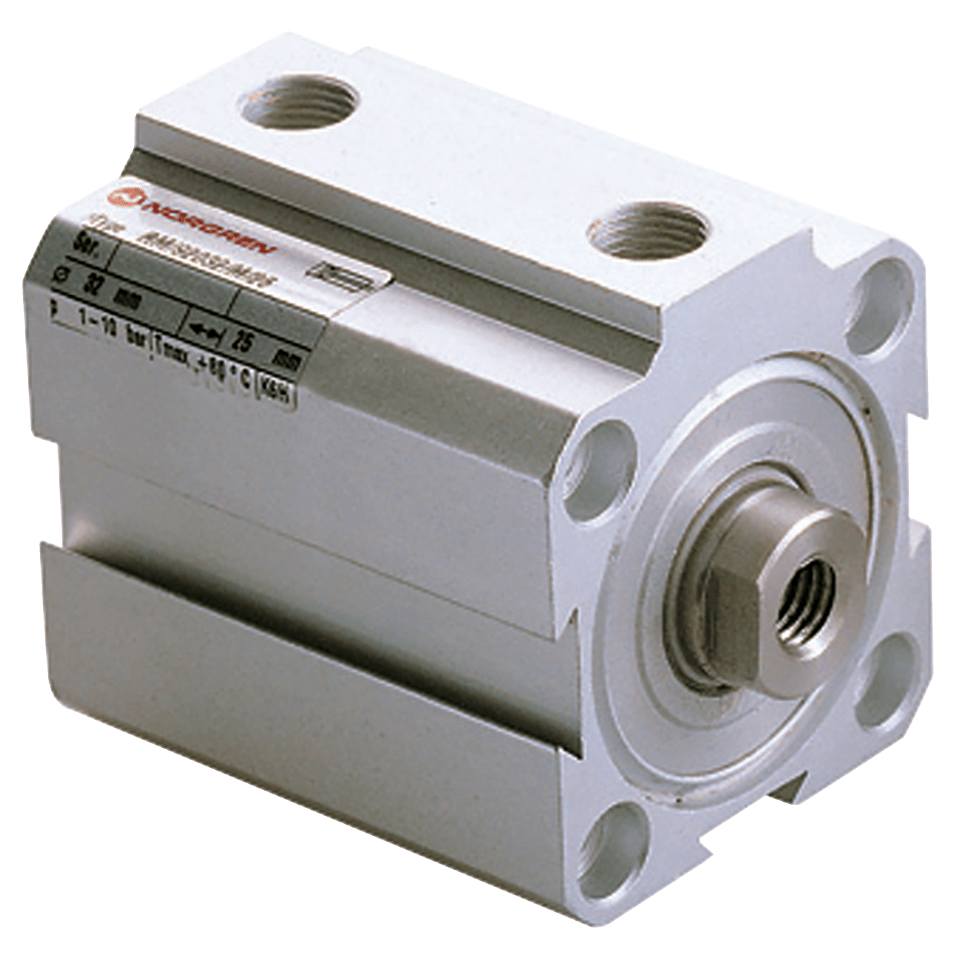

Compact Cylinders
Your item(s) have been added to your shopping basket
Compact Cylinders
- Technical specs
| Part number | Variation name | Bore size in mm | Cylinder stroke length in mm | Thread size |
|---|---|---|---|---|
| RM/91032/M/25 | Single Acting RM/91000/M | 32 | 25 | G1/8 |
| RM/91040/M/25 | Single Acting RM/91000/M | 40 | 25 | G1/8 |
| RM/92012/M/10 | Double Acting RM/92000/M | 12 | 10 | M5 |
| RM/92016/M/10 | Double Acting RM/92000/M | 16 | 10 | M5 |
| RM/92016/M/15 | Double Acting RM/92000/M | 16 | 15 | M5 |
| RM/92016/M/20 | Double Acting RM/92000/M | 16 | 20 | M5 |
| RM/92020/M/10 | Double Acting RM/92000/M | 20 | 10 | M5 |
| RM/92020/M/15 | Double Acting RM/92000/M | 20 | 15 | M5 |
| RM/92020/M/25 | Double Acting RM/92000/M | 20 | 25 | M5 |
| RM/92020/M/30 | Double Acting RM/92000/M | 20 | 30 | M5 |
| RM/92020/M/40 | Double Acting RM/92000/M | 20 | 40 | M5 |
| RM/92020/M/50 | Double Acting RM/92000/M | 20 | 50 | M5 |
| RM/92025/M/10 | Double Acting RM/92000/M | 25 | 10 | M5 |
| RM/92025/M/20 | Double Acting RM/92000/M | 25 | 20 | M5 |
| RM/92025/M/25 | Double Acting RM/92000/M | 25 | 25 | M5 |
| RM/92025/M/30 | Double Acting RM/92000/M | 25 | 30 | M5 |
| RM/92025/M/40 | Double Acting RM/92000/M | 25 | 40 | M5 |
| RM/92025/M/50 | Double Acting RM/92000/M | 25 | 50 | M5 |
| RM/92032/M/10 | Double Acting RM/92000/M | 32 | 10 | G1/8 |
| RM/92032/M/15 | Double Acting RM/92000/M | 32 | 15 | G1/8 |
| RM/92032/M/20 | Double Acting RM/92000/M | 32 | 20 | G1/8 |
| RM/92032/M/25 | Double Acting RM/92000/M | 32 | 25 | G1/8 |
| RM/92032/M/30 | Double Acting RM/92000/M | 32 | 30 | G1/8 |
| RM/92032/M/40 | Double Acting RM/92000/M | 32 | 40 | G1/8 |
| RM/92032/M/50 | Double Acting RM/92000/M | 32 | 50 | G1/8 |
| RM/92032/M/60 | Double Acting RM/92000/M | 32 | 60 | G1/8 |
| RM/92032/M/80 | Double Acting RM/92000/M | 32 | 80 | G1/8 |
| RM/92040/M/10 | Double Acting RM/92000/M | 40 | 10 | G1/8 |
| RM/92040/M/20 | Double Acting RM/92000/M | 40 | 20 | G1/8 |
| RM/92040/M/25 | Double Acting RM/92000/M | 40 | 25 | G1/8 |
| RM/92040/M/30 | Double Acting RM/92000/M | 40 | 30 | G1/8 |
| RM/92040/M/5 | Double Acting RM/92000/M | 40 | 5 | G1/8 |
| RM/92040/M/50 | Double Acting RM/92000/M | 40 | 50 | G1/8 |
| RM/92050/M/10 | Double Acting RM/92000/M | 50 | 10 | G1/8 |
| RM/92050/M/100 | Double Acting RM/92000/M | 50 | 100 | G1/8 |
| RM/92050/M/20 | Double Acting RM/92000/M | 50 | 20 | G1/8 |
| RM/92050/M/25 | Double Acting RM/92000/M | 50 | 25 | G1/8 |
| RM/92050/M/30 | Double Acting RM/92000/M | 50 | 30 | G1/8 |
| RM/92050/M/40 | Double Acting RM/92000/M | 50 | 40 | G1/8 |
| RM/92050/M/50 | Double Acting RM/92000/M | 50 | 50 | G1/8 |
| RM/92063/M/15 | Double Acting RM/92000/M | 63 | 15 | G1/4 |
| RM/92063/M/25 | Double Acting RM/92000/M | 63 | 25 | G1/4 |
| RM/92063/M/40 | Double Acting RM/92000/M | 63 | 40 | G1/4 |
| RM/92080/M/25 | Double Acting RM/92000/M | 80 | 25 | G1/4 |
| RM/92080/M/40 | Double Acting RM/92000/M | 80 | 40 | G1/4 |
| RM/92080/M/50 | Double Acting RM/92000/M | 80 | 50 | G1/4 |
| RM/92080/M/60 | Double Acting RM/92000/M | 80 | 60 | G1/4 |
| RM/92080/M/80 | Double Acting RM/92000/M | 80 | 80 | G1/4 |
| RM/92100/M/30 | Double Acting RM/92000/M | 100 | 30 | G1/4 |
| RM/92100/M/50 | Double Acting RM/92000/M | 100 | 50 | G1/4 |
