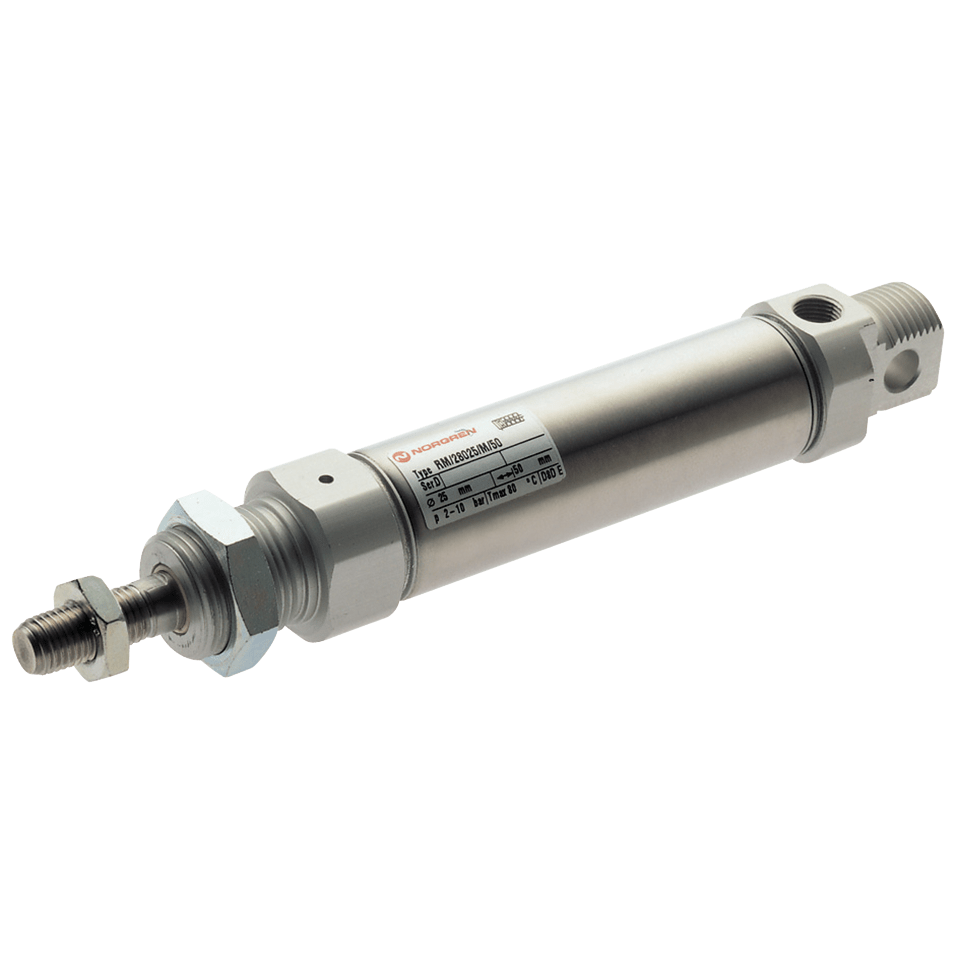

ISO 6432 Cylinders

Pneumatic & Vacuum Equipment ISO 6432 Cylinders & Mountings
Single Acting RM/28000/M
  • Technical specs
Part number Variation name Bore size in mm Cylinder stroke length in mm Thread size
RM/28010/M/10 Single Acting RM/28000/M 10 10 M5
RM/28010/M/25 Single Acting RM/28000/M 10 25 M5
RM/28010/M/50 Single Acting RM/28000/M 10 50 M5
RM/28020/M/10 Single Acting RM/28000/M 20 10 G1/8
RM/28020/M/25 Single Acting RM/28000/M 20 25 G1/8
RM/28020/M/50 Single Acting RM/28000/M 20 50 G1/8
RM/28025/M/10 Single Acting RM/28000/M 25 10 G1/8
RM/28025/M/25 Single Acting RM/28000/M 25 25 G1/8
RM/28025/M/50 Single Acting RM/28000/M 25 50 G1/8
RM/8010/M/100 Double Acting RM/8000/M 10 100 M5
RM/8010/M/25 Double Acting RM/8000/M 10 25 M5
RM/8010/M/50 Double Acting RM/8000/M 10 50 M5
RM/8010/M/80 Double Acting RM/8000/M 10 80 M5
RM/8012/M/25 Double Acting RM/8000/M 12 25 M5
RM/8012/M/50 Double Acting RM/8000/M 12 50 M5
RM/8016/M/100 Double Acting RM/8000/M 16 100 M5
RM/8016/M/25 Double Acting RM/8000/M 16 25 M5
RM/8016/M/50 Double Acting RM/8000/M 16 50 M5
RM/8020/M/100 Double Acting RM/8000/M 20 100 G1/8
RM/8020/M/25 Double Acting RM/8000/M 20 25 G1/8
RM/8020/M/50 Double Acting RM/8000/M 20 50 G1/8
RM/8020/M/80 Double Acting RM/8000/M 20 80 G1/8
RM/8025/M/100 Double Acting RM/8000/M 25 100 G1/8
RM/8025/M/25 Double Acting RM/8000/M 25 25 G1/8
RM/8025/M/50 Double Acting RM/8000/M 25 50 G1/8
RM/8025/M/80 Double Acting RM/8000/M 25 80 G1/8
