Tube x Stem Connectors

Pneumatic & Vacuum Equipment Series 7000 Super-Rapid Compact Fittings

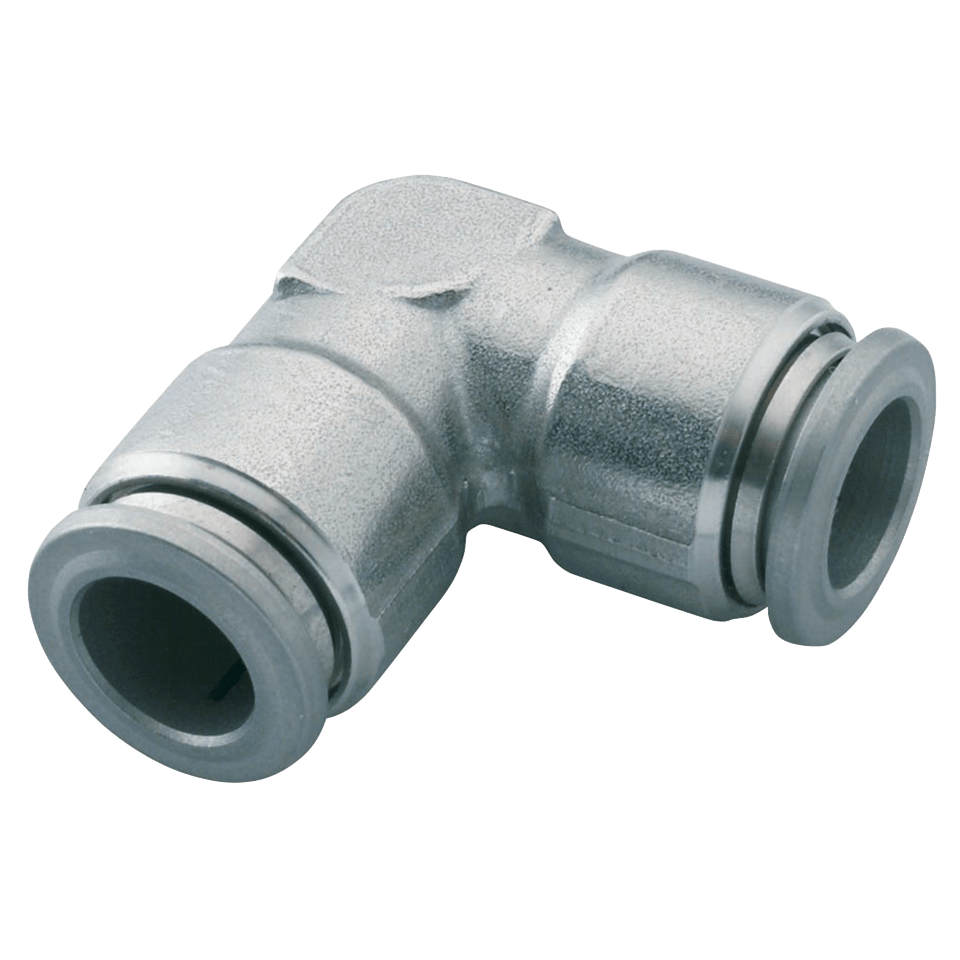

Elbows
  • Technical specs
Part number Variation name Outside diameter in mm Stem o.d. in millimetres
7555 10-10 Elbows 10 10
7555 12-12 Elbows 12 12
7555 4-4 Elbows 4 4
7555 6-6 Elbows 6 6
7555 8-8 Elbows 8 8
7800 10-12 Unequal Straights 10 12
7800 4-6 Unequal Straights 4 6
7800 4-8 Unequal Straights 4 8
7800 6-10 Unequal Straights 6 10
7800 6-12 Unequal Straights 6 12
7800 6-8 Unequal Straights 6 8
7800 8-10 Unequal Straights 8 10
7800 8-12 Unequal Straights 8 12
