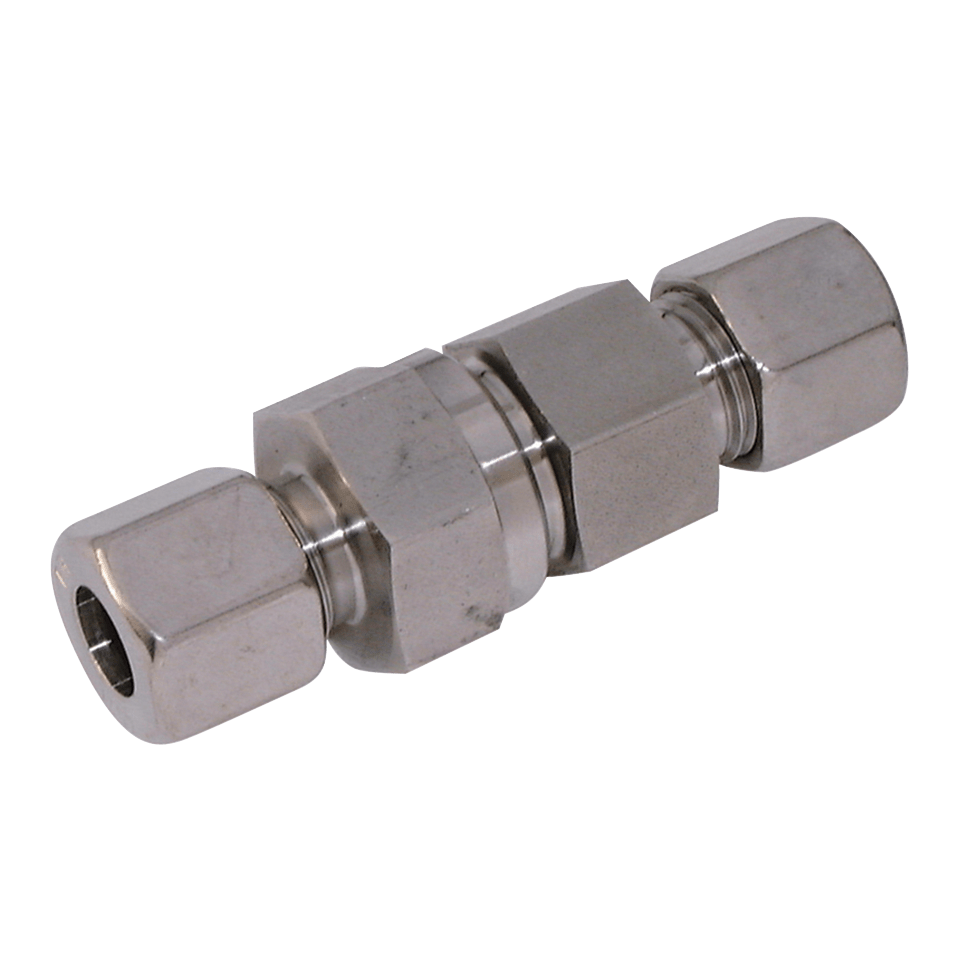

Non-return Valves
Your item(s) have been added to your shopping basket
Non-return Valves
- Technical specs
| Part number | Variation name | Outside diameter in mm | Cracking pressure in bar |
|---|---|---|---|
| 770-0606 | L Series, Tube x Tube | 6 | 0.5 |
| 770-0808 | L Series, Tube x Tube | 8 | 0.5 |
| 770-1010 | L Series, Tube x Tube | 10 | 0.5 |
| 770-1212 | L Series, Tube x Tube | 12 | 0.5 |
| 770-1515 | L Series, Tube x Tube | 15 | 0.5 |
| 770-1818 | L Series, Tube x Tube | 18 | 0.5 |
| 770-2222 | L Series, Tube x Tube | 22 | 0.5 |
| 770-2828 | L Series, Tube x Tube | 28 | 0.5 |
| 770-3535 | L Series, Tube x Tube | 35 | 0.5 |
| 770-4242 | L Series, Tube x Tube | 42 | 0.5 |
| RD-10S | S Series, Tube x Tube | 10 | |
| RD-12S | S Series, Tube x Tube | 12 | |
| RD-14S | S Series, Tube x Tube | 14 | |
| RD-16S | S Series, Tube x Tube | 16 | |
| RD-20S | S Series, Tube x Tube | 20 | |
| RD-25S | S Series, Tube x Tube | 25 | |
| RD-30S | S Series, Tube x Tube | 30 | |
| RD-38S | S Series, Tube x Tube | 38 | |
| RD-6S | S Series, Tube x Tube | 6 | |
| RD-8S | S Series, Tube x Tube | 8 | |
| RV-10L-4RG | L Series, BSPP, Flow Away From Thread | 10 | 1/4" |
| RV-10S-4RG | S Series, BSPP, Flow Away From Thread | 10 | 1/4" |
| RV-12L-6RG | L Series, BSPP, Flow Away From Thread | 12 | 3/8" |
| RV-12S-6RG | S Series, BSPP, Flow Away From Thread | 12 | 3/8" |
| RV-14S-8RG | S Series, BSPP, Flow Away From Thread | 14 | 1/2" |
| RV-15L-8RG | L Series, BSPP, Flow Away From Thread | 15 | 1/2" |
| RV-16S-8RG | S Series, BSPP, Flow Away From Thread | 16 | 1/2" |
| RV-18L-8RG | L Series, BSPP, Flow Away From Thread | 18 | 1/2" |
| RV-20S-12RG | S Series, BSPP, Flow Away From Thread | 20 | 3/4" |
| RV-22L-12RG | L Series, BSPP, Flow Away From Thread | 22 | 3/4" |
| RV-25S-16RG | S Series, BSPP, Flow Away From Thread | 25 | 1" |
| RV-28L-16RG | L Series, BSPP, Flow Away From Thread | 28 | 1" |
| RV-30S-20RG | S Series, BSPP, Flow Away From Thread | 30 | 1.1/4" |
| RV-35L-20RG | L Series, BSPP, Flow Away From Thread | 35 | 1.1/4" |
| RV-38S-24RG | S Series, BSPP, Flow Away From Thread | 38 | 1.1/2" |
| RV-42L-24RG | L Series, BSPP, Flow Away From Thread | 42 | 1.1/2" |
| RV-6L-2RG | L Series, BSPP, Flow Away From Thread | 6 | 1/8" |
| RV-6S-2RG | S Series, BSPP, Flow Away From Thread | 6 | 1/8" |
| RV-8L-4RG | L Series, BSPP, Flow Away From Thread | 8 | 1/4" |
| RV-8S-4RG | S Series, BSPP, Flow Away From Thread | 8 | 1/4" |
| RZ-10L-4RG | L Series, BSPP, Flow Towards Thread | 10 | 1/4" |
| RZ-10S-4RG | S Series, BSPP, Flow Towards Thread | 10 | 1/4" |
| RZ-12L-6RG | L Series, BSPP, Flow Towards Thread | 12 | 3/8" |
| RZ-12S-6RG | S Series, BSPP, Flow Towards Thread | 12 | 3/8" |
| RZ-14S-8RG | S Series, BSPP, Flow Towards Thread | 14 | 1/2" |
| RZ-15L-8RG | L Series, BSPP, Flow Towards Thread | 15 | 1/2" |
| RZ-16S-8RG | S Series, BSPP, Flow Towards Thread | 16 | 1/2" |
| RZ-18L-8RG | L Series, BSPP, Flow Towards Thread | 18 | 1/2" |
| RZ-20S-12RG | S Series, BSPP, Flow Towards Thread | 20 | 3/4" |
| RZ-22L-12RG | L Series, BSPP, Flow Towards Thread | 22 | 3/4" |
| RZ-25S-16RG | S Series, BSPP, Flow Towards Thread | 25 | 1" |
| RZ-28L-16RG | L Series, BSPP, Flow Towards Thread | 28 | 1" |
| RZ-30S-20RG | S Series, BSPP, Flow Towards Thread | 30 | 1.1/4" |
| RZ-35L-20RG | L Series, BSPP, Flow Towards Thread | 35 | 1.1/4" |
| RZ-38S-24RG | S Series, BSPP, Flow Towards Thread | 38 | 1.1/2" |
| RZ-42L-24RG | L Series, BSPP, Flow Towards Thread | 42 | 1.1/2" |
| RZ-6L-2RG | L Series, BSPP, Flow Towards Thread | 6 | 1/8" |
| RZ-6S-2RG | S Series, BSPP, Flow Towards Thread | 6 | 1/8" |
| RZ-8L-4RG | L Series, BSPP, Flow Towards Thread | 8 | 1/4" |
| RZ-8S-4RG | S Series, BSPP, Flow Towards Thread | 8 | 1/4" |
