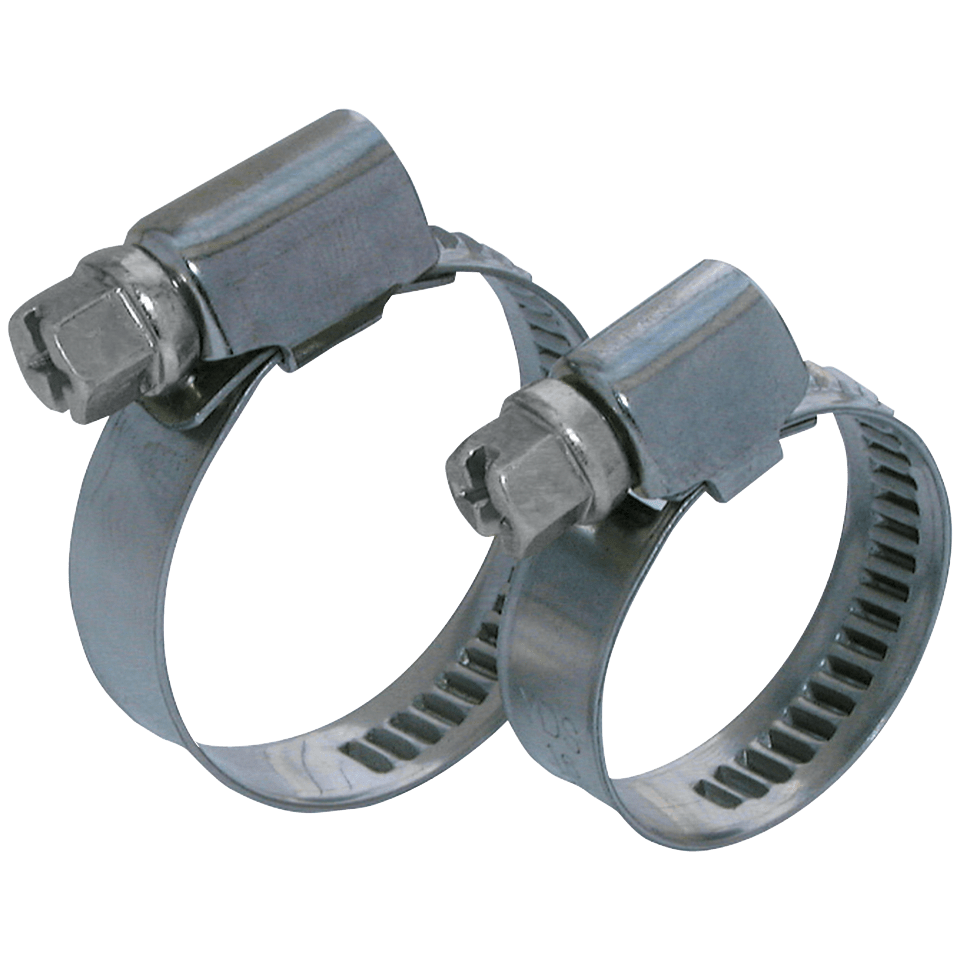

Hose Clamps

Worm Drive Hose Clamps Clamps & Clips
9mm Band Width
  • Technical specs
Part number Variation name Minimum size in mm Maximum size in mm Size reference
HC10-16 9mm Band Width 10 16 MOO
HC100-120 12mm Band Width 100 120 5
HC110-130 12mm Band Width 110 130 -
HC12-20 9mm Band Width 12 20 OO
HC120-140 12mm Band Width 120 140 6 and 6X
HC130-150 12mm Band Width 130 150 -
HC140-160 12mm Band Width 140 160 7
HC16-25 9mm Band Width 16 25 OX
HC20-32 9mm Band Width 20 32 1A
HC25-40 9mm Band Width 25 40 1
HC32-50 9mm Band Width 32 50 2A
HC35-45 9mm Band Width 35 45 -
HC40-60 9mm Band Width 40 60 2
HC50-70 12mm Band Width 50 70 3
HC60-80 12mm Band Width 60 80 3X
HC70-90 12mm Band Width 70 90 4
HC8-12 9mm Band Width 8 12 OOO
HC80-100 12mm Band Width 80 100 4X
HC90-110 12mm Band Width 90 110 -
