Bottom Entry Pressure Gauges

• We supply and stock a large range of analogue pressure gauges, 63 and 100mm • Manufactured in accordance with BS-EN837-1 specifi cations, all gauges are to ±1.6% accuracy • Stocked gauges are glycerine-fi lled as standard with stainless steel casing and brass connection/internals • Scaling is dual bar (in red – inner scale) and psi (in black – outer scale)
Hydraulics 63mm Pressure Gauges
Gauge Thread-reducing Adaptors
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm5550 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
08GF-12GM Gauge Thread-reducing Adaptors G 1/4"
08GF-16GM Gauge Thread-reducing Adaptors G 1/4"
12GF-08GM Gauge Thread-reducing Adaptors G 3/8"
12GF-16GM Gauge Thread-reducing Adaptors G 3/8"
16GF-08GM Gauge Thread-reducing Adaptors G 1/2"

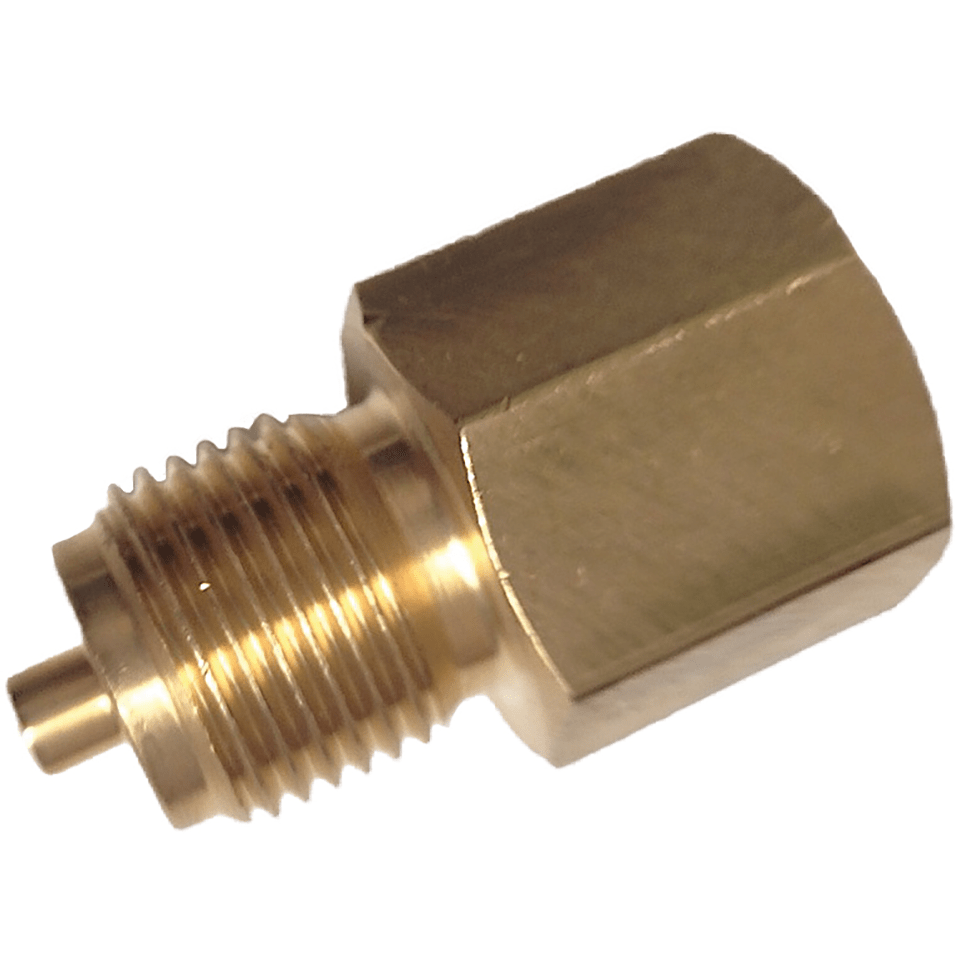

16GF-12GM Gauge Thread-reducing Adaptors G 1/2"
2103-08-01.62 Gauge Thread-reducing Adaptors G 1/4"
2103-08-02.62 Gauge Thread-reducing Adaptors G 1/2"
9800-00-00.01 Accessories for 63mm Bottom Entry Gauges
9801-100 1/4” BSP, 63mm Diameter 63mm 0 to 7
9801-1000 1/4” BSP, 63mm Diameter 63mm 0 to 70
9801-10000 1/4” BSP, 63mm Diameter 63mm 0 to 700
9801-15 1/4” BSP, 63mm Diameter 63mm 0 to 1
9801-1500 1/4” BSP, 63mm Diameter 63mm 0 to 100
9801-160 1/4” BSP, 63mm Diameter 63mm 0 to 11
9801-200 1/4” BSP, 63mm Diameter 63mm 0 to 14
9801-2000 1/4” BSP, 63mm Diameter 63mm 0 to 140
9801-2500 1/4” BSP, 63mm Diameter 63mm 0 to 170
9801-30 1/4” BSP, 63mm Diameter 63mm 0 to 2
9801-300 1/4” BSP, 63mm Diameter 63mm 0 to 20
9801-3000 1/4” BSP, 63mm Diameter 63mm 0 to 200
9801-400 1/4” BSP, 63mm Diameter 63mm 0 to 28
9801-4000 1/4” BSP, 63mm Diameter 63mm 0 to 280
9801-500 1/4” BSP, 63mm Diameter 63mm 0 to 35
9801-5000 1/4” BSP, 63mm Diameter 63mm 0 to 350
9801-60 1/4” BSP, 63mm Diameter 63mm 0 to 4
9801-600 1/4” BSP, 63mm Diameter 63mm 0 to 40
9801-6000 1/4” BSP, 63mm Diameter 63mm 0 to 400
9801-60C 1/4” BSP, 63mm Diameter 63mm -1 to 4
9801-Cal Accessories for 63mm Bottom Entry Gauges
ACC16000 Accessories for 63mm Bottom Entry Gauges
