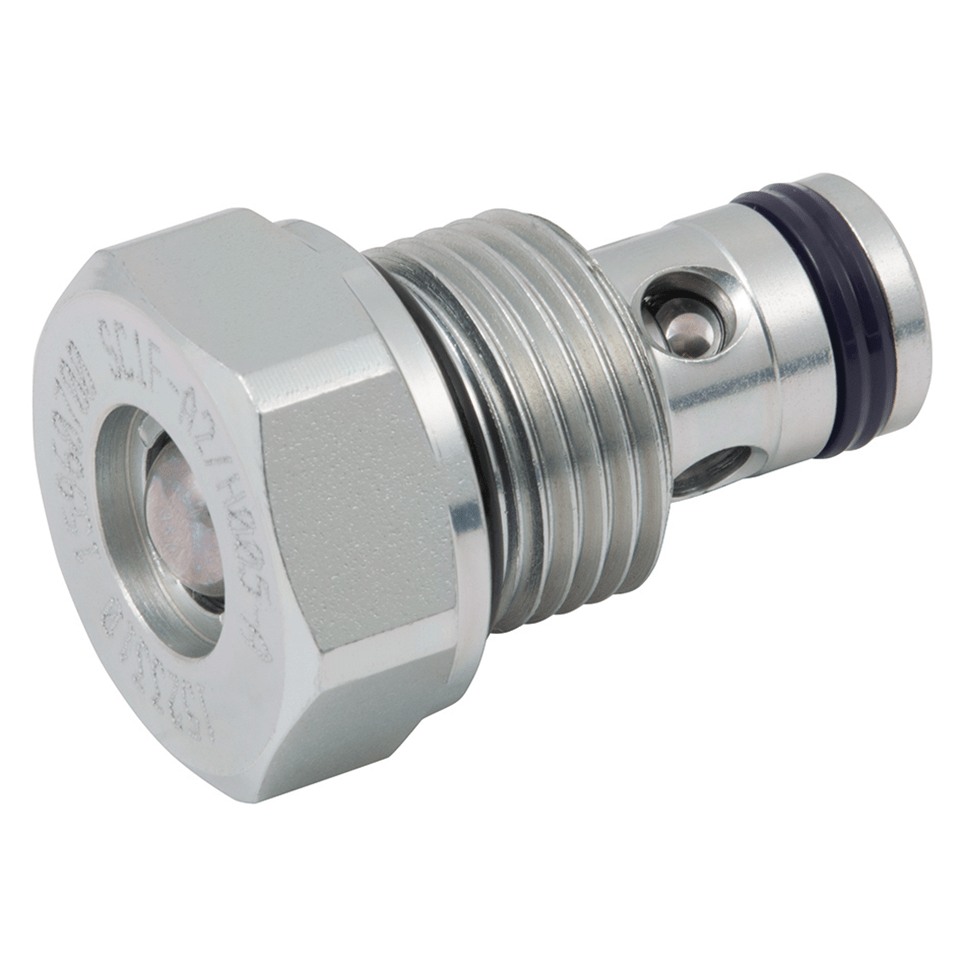

Cartridge Check Valves

Technical Features: • Hardened precision parts • Sharp-edged steel seats for dirt-tolerant performance • Leak-free closing, suitable for fast cycling with long life • High fl ow capacity • Optional bias spring ranges for back-pressure control • In the standard version, the valve is zinc-coated for 240 h protection according to ISO 9227 Function: • Hydraulic check valve • Screw-in cartridge design for use as a blocking or load-holding device • The cartridge has a ball check which is closed by spring until suffi cient pressure is applied at port 1 to open fl ow to port 3
Hydraulics Cartridge Valves
Ball Type, Cracking Pressure 0.5 bar
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4722 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
SC1F-A2/H005 Ball Type, Cracking Pressure 0.5 bar 250 3/4-16 40
SC1F-B2/H005 Ball Type, Cracking Pressure 0.5 bar 250 7/8-14 120
