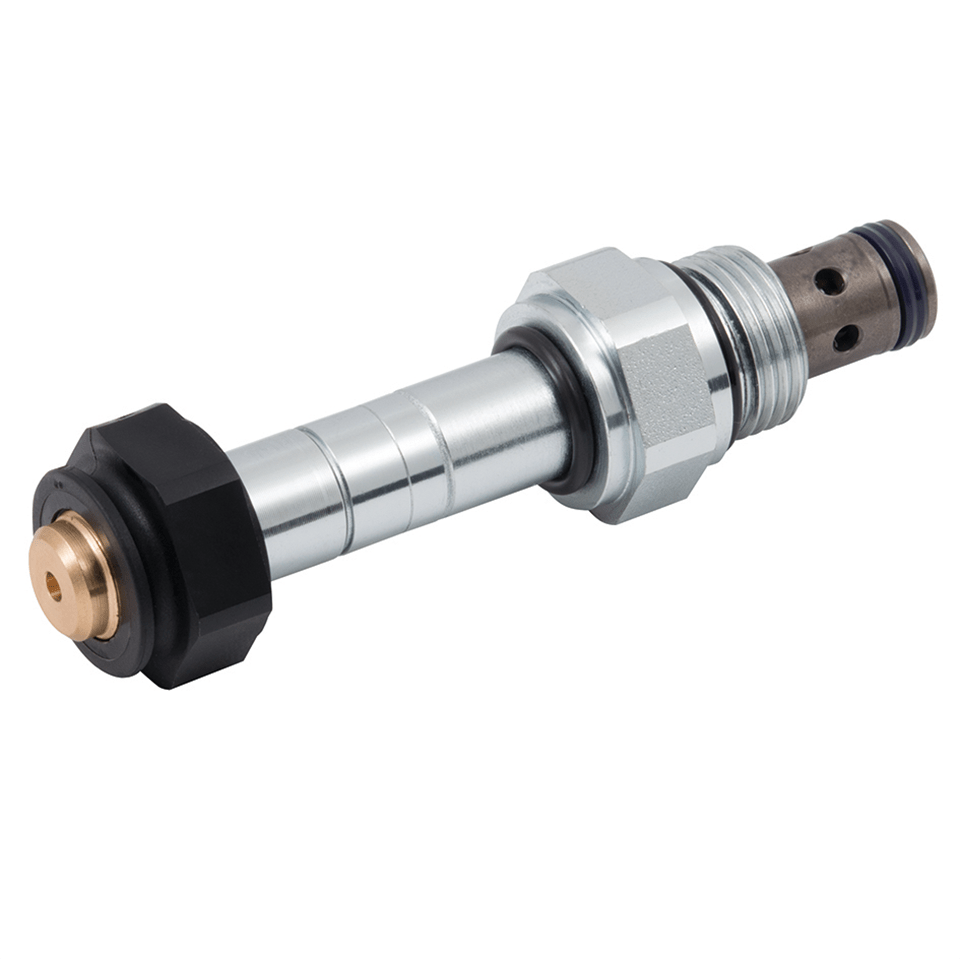

Spool Type Cartridge Valves, Lightline

Hydraulics Cartridge Valves
2/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF
Specifications
Function: • Two-way, two-position, high pressure bidirectional spool valve • Screw-in cartridge design • Used mainly to direct fl ow to actuators
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4674 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
SD2E-A2/L2I11 2/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 Normally Open
SD2E-A2/L2I12 2/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 Normally Closed
SD2E-A3/L2D21 3/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 2-1 Common in Mid Position
SD2E-A3/L2D25 3/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 2-1 Blank in Mid Position
SD2E-A3/L2D26 3/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 3-2 Alternative Flow Path in Mid Position
SD2E-A4/L2R21 4/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 P to A, B to T in Neutral, P to B, A to T Energised
SD2E-A4/L2X21 4/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 P to B, A to T in Neutral P to A, B to T Energised
SD2E-A4/L2Z11 4/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 All Ports Closed in Neutral P to A, B to T Energised
SD2E-A4/L2Z51 4/2 Directional Valves, Solenoid Operated, Direct Acting, 3/4-16 UNF 20 All Ports Closed in Neutral, Cross Over P to B, A to T Energised
SD2E-B2/L2I11 2/2 Directional Valves, Solenoid Operated, Direct Acting, 7/8-14 UNF 50 Normally Open
SD2E-B2/L2I12 2/2 Directional Valves, Solenoid Operated, Direct Acting, 7/8-14 UNF 50 Normally Closed
SD2E-B3/L2D21 3/2 Directional Valves, Solenoid Operated, Direct Acting, 7/8-14 UNF 50 2-1 Common in Mid Position
SD2E-B3/L2D25 3/2 Directional Valves, Solenoid Operated, Direct Acting, 7/8-14 UNF 50 2-1 Blank in Mid Position
SD2E-B3/L2D26 3/2 Directional Valves, Solenoid Operated, Direct Acting, 7/8-14 UNF 50 3-2 Alternative Flow Path in Mid Position
SD2E-B4/L2Z11 4/2 Directional Valves, Solenoid Operated, Direct Acting, 7/8-14 UNF 50 All Ports Closed in Neutral P to A, B to T Energised
SD2E-B4/L2Z51 4/2 Directional Valves, Solenoid Operated, Direct Acting, 7/8-14 UNF 50 All Ports Closed in Neutral, Cross Over P to B, A to T Energised
