CETOP 3 Sandwich Valves

Hydraulics CETOP Directional Control Valves
Flow Restrictor
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4902 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number

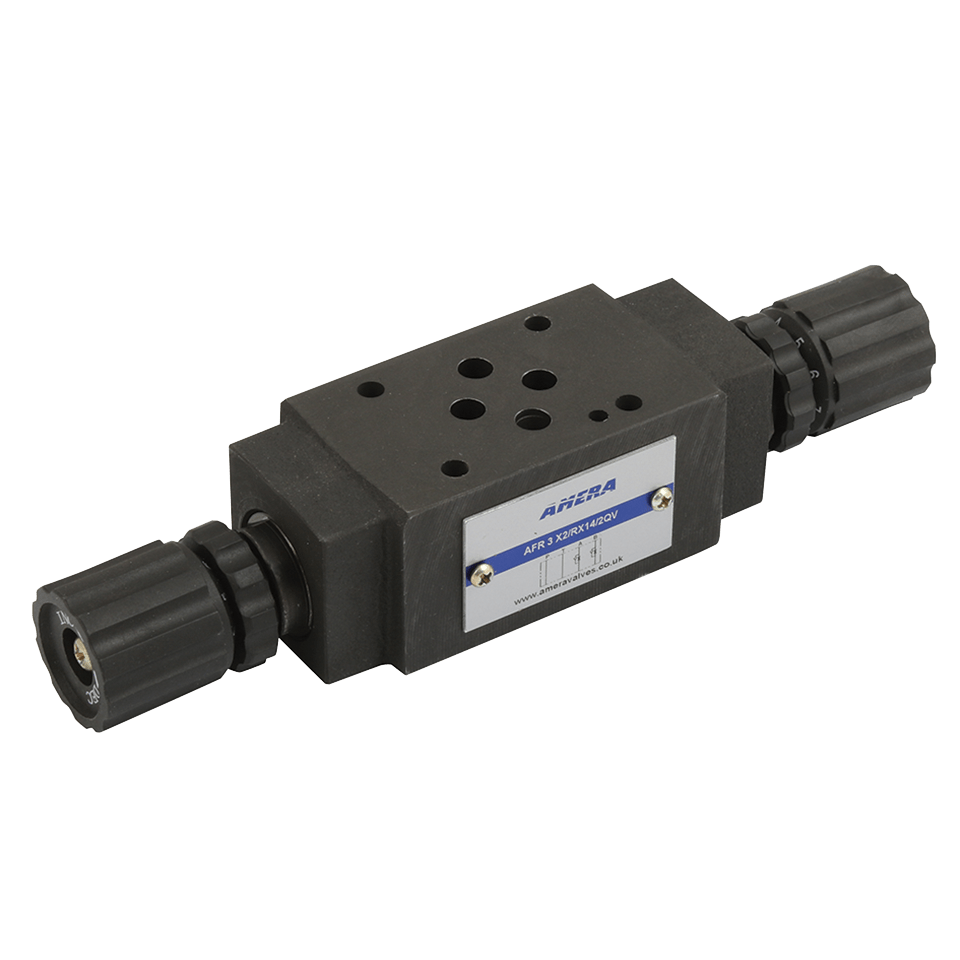

1010-1022 Flow Restrictor AFR 3 X2/RX14/2Q A & B Meter In
1010-1023 Flow Restrictor AFR 3 Y2/RX14/2Q A & B Meter Out
1010-1024 Pilot Operated Check APOC 3 A1/RX14/N Single
1010-1025 Pilot Operated Check APOC 3 AB1/RX14/ Double
1010-1026 Pressure Reducing 3.5-75 ARD 3 PP 2/RX14/75
1010-1027 Pressure Reducing 10-150 ARD 3 PP 2/RX14/150
1010-1028 Pressure Reducing 20-210 ARD 3 PP 2/RX14/210
1010-1029 Single Line Pressure Relief 10-200 ASPR 3 PT1/RX14/200
1010-1030 Single Line Pressure Relief 50-315 ASPR 3 PT1/RX14/315
1010-1050 Single Line Pressure Relief 3-100 ASPR 3 PT1/RX14/100
1010-1051 Dual Line Pressure Relief 10-200 ADPR 3 AT1 BT1/RX14/200
1010-1052 Direct Operated Check 0.5 ADOC 3 PA/RX14/
1010-1053 Flow Restrictor AFR 3 Z P2/RX14/2Q P Line
