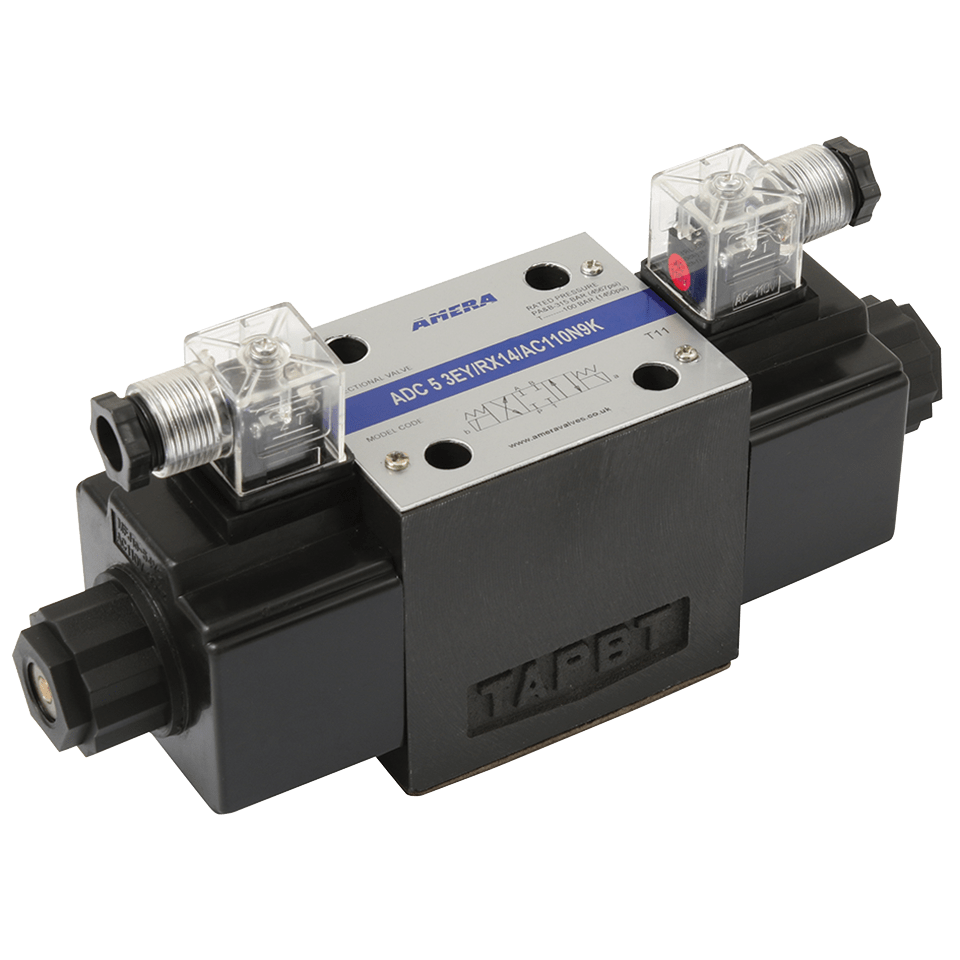

CETOP 5, Double Solenoid

Max Flow Rate: 120 l/min Viscosity: 2.8-100 mm2/s ISO 4401 Size 5 DIN 24340 Size 10 IP65
Hydraulics CETOP Directional Control Valves
3 Position, All Ports Closed, Spring Centred
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4891 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
1010-1017 3 Position, All Ports Closed, Spring Centred ADC 5 3EY/RX14/AC110N9K 110V AC
1010-1018 4 Position, All Ports Closed, Spring Centred ADC 5 3EY/RX14/DC24N9K 24V DC
1010-1019 3 Position, A, B & T Connected, Spring Centred ADC 5 3JY/RX14/AC110N9K 110V AC
1010-1020 4 Position, A, B & T Connected, Spring Centred ADC 5 3JY/RX14/DC24N9K 24V DC
1010-1021 4 Position, P & T Connected A & B Blocked, Spring Centred ADC 5 3GY/RX14/DC24N9K 24V DC
1010-1054 3 Position, Detented ADC 5 2DD/RX14/DC24N9K 24V DC
1010-1055 2 Position, Detented ADC 5 2DD/RX14/AC110N9K 110V AC
1010-1056 3 Position, P & T Connected A & B Blocked, Spring Centred ADC 5 3GY/RX14/AC110N9K 110V AC
1010-1065 5 Position, All Ports Closed, Spring Centred ADC 5 3EY/RX14/DC12N9K 12V DC
1010-1066 5 Position, P & T Connected A & B Blocked, Spring Centred ADC 5 3GY/RX14/DC12N9K 12V DC
1010-1067 4 Position, All Ports Open, Spring Centred ADC 5 3HY/RX14/DC12N9K 12V DC
1010-1068 5 Position, A, B & T Connected, Spring Centred ADC 5 3JY/RX14/DC12N9K 12V DC
1010-1070 3 Position, All Ports Open, Spring Centred ADC 5 3HY/RX14/DC24N9K 24V DC
