PB Series Filters, 420 bar

Pressure line fi lters are an essential part in most hydraulic systems. When the hydraulic components are sophisticated, with close tolerances and a regulation function (not simply that of control) the use of fi lters in the pressure lines is a must. These filters take care of system components, ensuring the recommended cleanliness levels. Filter elements are manufactured from glass fibre and cellulose media. Working Temperature: -25°C to +110°C Maximum Working Pressure: 420 bar Clogging indicators give an exact indication of the proper time to replace the fi lter element. Materials: • Cast iron head • Steel bowl • Steel bypass valve • NBR nitrile seals (FKM fl uoroelastomer on request) • Brass indicator housing Pressures: (ISO 10771-1:2002) • Maximum working: 42 MPa (420 bar) • Test: 62 MPa (620 bar) • Bursting: 126 MPa (1.260 bar) • Collapse differential for the fi lter element (ISO 2941): · Series standard 2 MPa (20 bar) · Series H+ 21 MPa (210 bar)
Hydraulics High Pressure Hydraulic Filtration

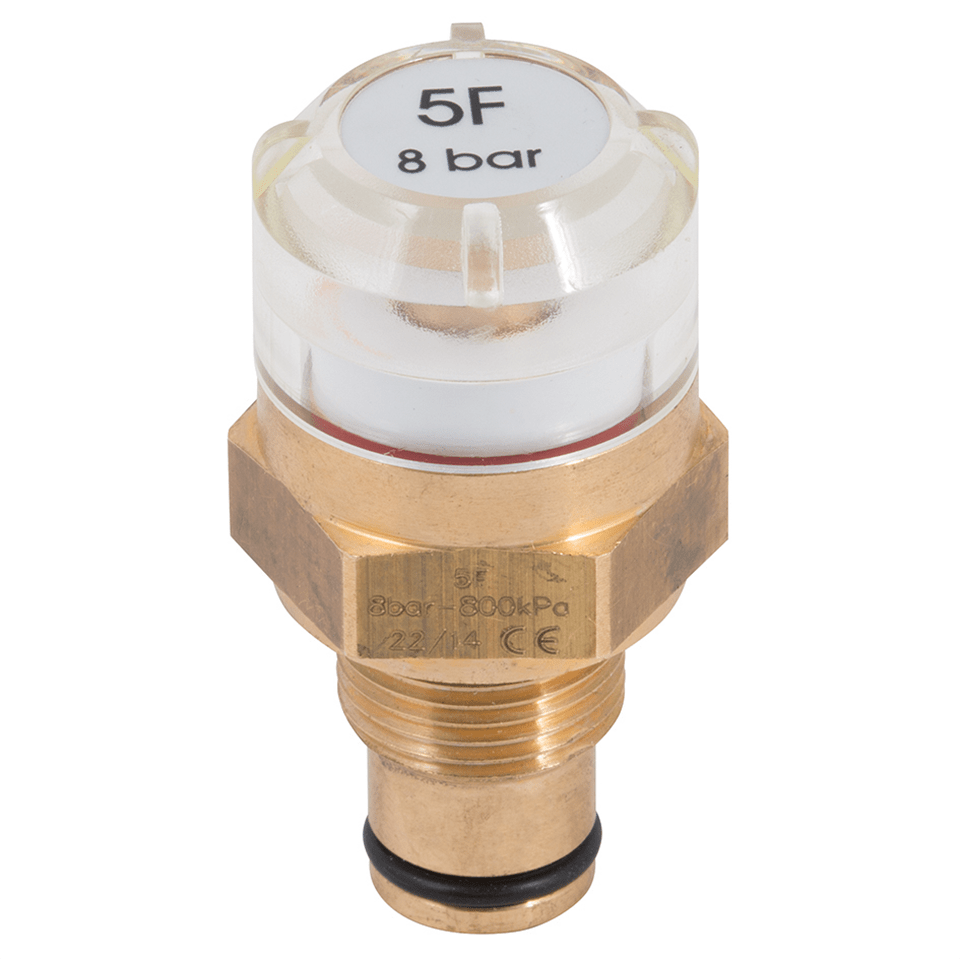

Clogging Indicators, Visual
Specifications
Clogging indicators give an exact indication of the proper time to replace the fi lter element.
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm6165 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
5E-PBIND Clogging Indicators, Visual 5
5F-PBIND Clogging Indicators, Visual 8
6E-PBIND Clogging Indicators, Electrical 5
6F-PBIND Clogging Indicators, Electrical 8
7E-PBIND Clogging Indicators, LED Electrical, 24V 5
7F-PBIND Clogging Indicators, LED Electrical, 24V 8
EPB12NFA Replacement Fibre Elements 5 12
EPB12NFB Replacement Fibre Elements 7 12
EPB12NFC Replacement Fibre Elements 12 12
EPB12NFD Replacement Fibre Elements 21 12
EPB13NFA Replacement Fibre Elements 5 13
EPB13NFB Replacement Fibre Elements 7 13
EPB13NFC Replacement Fibre Elements 12 13
EPB13NFD Replacement Fibre Elements 21 13
EPB21NFA Replacement Fibre Elements 5 21
EPB21NFB Replacement Fibre Elements 7 21
EPB21NFC Replacement Fibre Elements 12 21
EPB21NFD Replacement Fibre Elements 21 21
EPB31NFA Replacement Fibre Elements 5 31
EPB31NFB Replacement Fibre Elements 7 31
EPB31NFC Replacement Fibre Elements 12 31
EPB31NFD Replacement Fibre Elements 21 31
EPB33NFA Replacement Fibre Elements 5 33
EPB33NFB Replacement Fibre Elements 7 33
EPB33NFC Replacement Fibre Elements 12 33
EPB33NFD Replacement Fibre Elements 21 33
EPB34NFA Replacement Fibre Elements 5 34
EPB34NFB Replacement Fibre Elements 7 34
EPB34NFC Replacement Fibre Elements 12 34
EPB34NFD Replacement Fibre Elements 21 34
FPB12B04CNFA03EX BSPP Ported, No Indicator, Bypass 6 bar, 5 Micron 1/2” Jan-00
FPB12B04CNFB03EX BSPP Ported, No Indicator, Bypass 6 bar, 21 Micron 1/2” 12
FPB12B04CNFC03EX BSPP Ported, No Indicator, Bypass 6 bar, 7 Micron 1/2” 12
FPB12B04CNFD03EX BSPP Ported, No Indicator, Bypass 6 bar, 12 Micron 1/2” 12
FPB13B06CNFA03EX BSPP Ported, No Indicator, Bypass 6 bar, 5 Micron 3/4” 13
FPB13B06CNFB03EX BSPP Ported, No Indicator, Bypass 6 bar, 21 Micron 3/4” 13
FPB13B06CNFC03EX BSPP Ported, No Indicator, Bypass 6 bar, 7 Micron 3/4” 13
FPB13B06CNFD03EX BSPP Ported, No Indicator, Bypass 6 bar, 12 Micron 3/4” 13
FPB21B08CNFA03EX BSPP Ported, No Indicator, Bypass 6 bar, 5 Micron 1” 21
FPB21B08CNFB03EX BSPP Ported, No Indicator, Bypass 6 bar, 21 Micron 1” 21
FPB21B08CNFC03EX BSPP Ported, No Indicator, Bypass 6 bar, 7 Micron 1” 21
FPB21B08CNFD03EX BSPP Ported, No Indicator, Bypass 6 bar, 12 Micron 1” 21
FPB31B10CNFA03EX BSPP Ported, No Indicator, Bypass 6 bar, 5 Micron 1.1/4” 31
FPB31B10CNFB03EX BSPP Ported, No Indicator, Bypass 6 bar, 21 Micron 1.1/4” 31
FPB31B10CNFC03EX BSPP Ported, No Indicator, Bypass 6 bar, 7 Micron 1.1/4” 31
FPB31B10CNFD03EX BSPP Ported, No Indicator, Bypass 6 bar, 12 Micron 1.1/4” 31
FPB33B12CNFA03EX BSPP Ported, No Indicator, Bypass 6 bar, 5 Micron 1.1/2” 33
FPB33B12CNFB03EX BSPP Ported, No Indicator, Bypass 6 bar, 21 Micron 1.1/2” 33
FPB33B12CNFC03EX BSPP Ported, No Indicator, Bypass 6 bar, 7 Micron 1.1/2” 33
FPB33B12CNFD03EX BSPP Ported, No Indicator, Bypass 6 bar, 12 Micron 1.1/2” 33
FPB34B12CNFA03EX BSPP Ported, No Indicator, Bypass 6 bar, 5 Micron 1.1/2” 34
FPB34B12CNFC03EX BSPP Ported, No Indicator, Bypass 6 bar, 7 Micron 1.1/2” 34
FPB34B12CNFD03EX BSPP Ported, No Indicator, Bypass 6 bar, 12 Micron 1.1/2” 34
FPB34B12CNFD03EX_1 BSPP Ported, No Indicator, Bypass 6 bar, 21 Micron 1.1/2” 34
