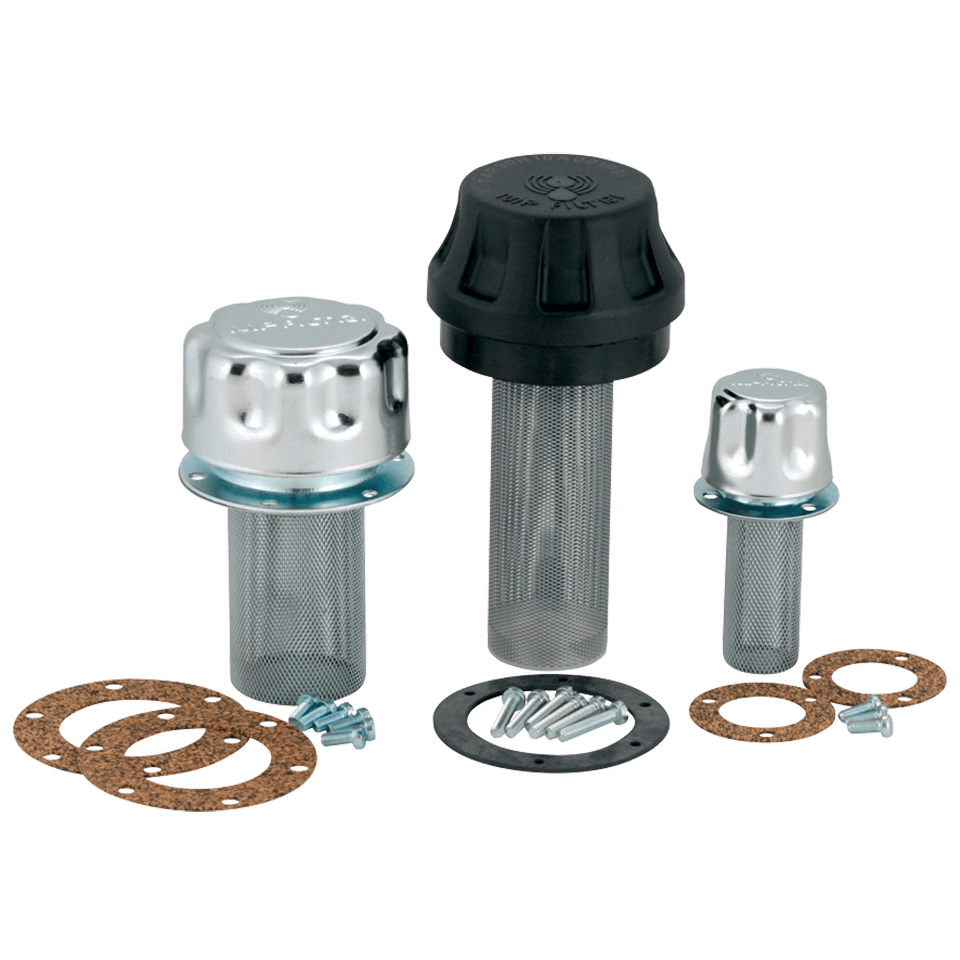

Filler Breathers

Material: TA46 and TA80 – chrome-plated steel fi ller breathers Material: TAP90 – moulded glass-fi lled nylon fi ller breathers Strainer: galvanised steel Breather: resin-impregnated cellulose 10 micron Fixings: TA46 – 3 hole (5mm threads) TA80 – 6 hole (5mm threads) TAP90 – 6 hole (5mm threads) Pressurised options available on the TA80 and TAP 90 at 0.3 bar and 0.7 bar. Please contact our technical department.
Hydraulics Hydraulic Accessories
Complete with Basket
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm6340 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
2086-2769 Complete with Basket 111 TA46B10B001P01
2086-2777 Complete with Basket 141 TA80B10B001P01
2086-2785 Complete with Basket 184 TAP90R10A001P01
