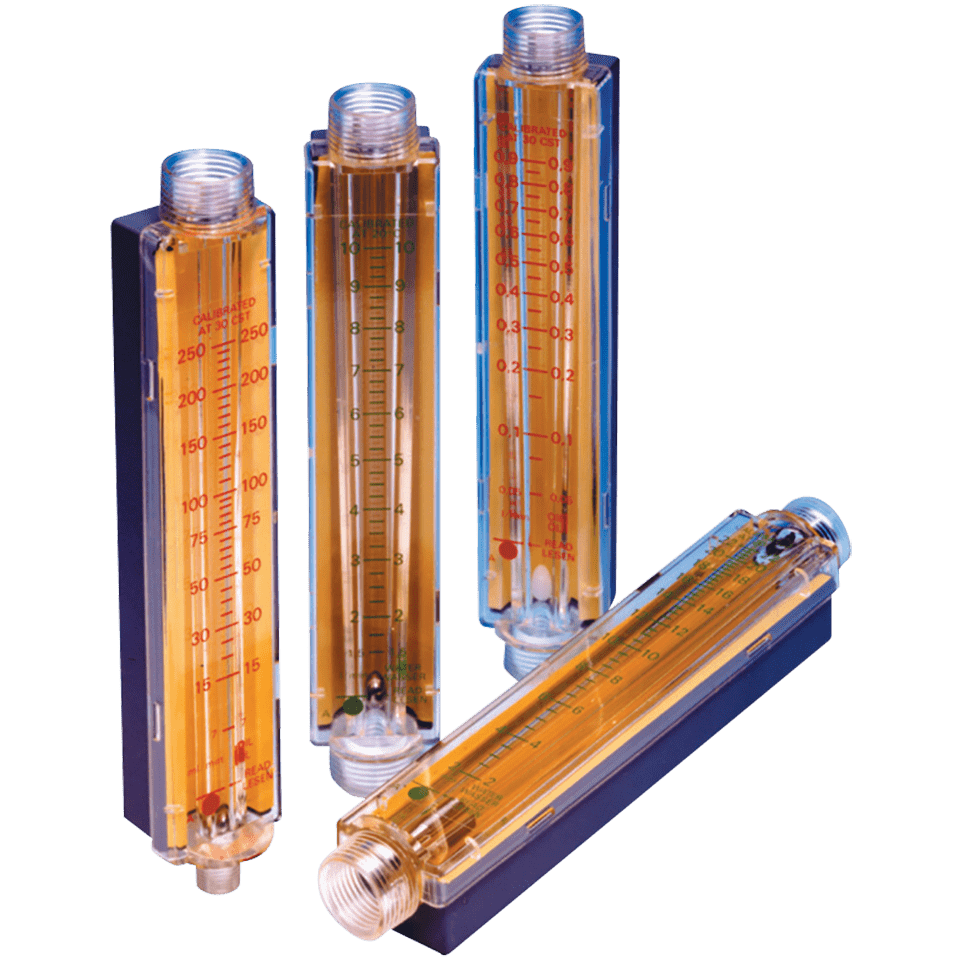

Lofl ow Oil, Water & Air Flowmeters
• Flow measurement from 7.0 ml/min to 22 l/min
• Easy to read, permanent printed scales
• Large scale defi nition for precise measurement
• Easy panel mounting assembly
• Negligible pressure drop characteristics
• 10 bar pressure rating
Construction:
Body: Grillon TR55.
Back Body: ABS7020.
Ball Retainer: ABS7020.
Back Panel: PVC.
Accuracy: ±2% FSD.
Repeatability: ±1%.
Connections:
Inlet 1/4” or 3/4” tapered threads.
Outlet 3/4” tapered threads.
Typical Applications:
• Monitoring inert gases for the welding industry
• Pollution monitoring
• Pharmaceutical industry
• Filtration systems
• Hospital equipment for water applications
• Water treatment
• Swimming pools
Your item(s) have been added to your shopping basket
Lofl ow Oil, Water & Air
Flowmeters
- Technical specs
| Part number | Variation name | Outside diameter in millimetres | Bend radius in millimetres | Burst pressure in bar | Maximum gauge pressure in bar | Burst pressure | Vacuum level in inches of mercury | Thread size | Thread size in millimetres | Thread size in UNF | Size of inlet thread | Size of outlet thread | To suit internal diameter of hose | To suit metric internal diameter of hose | To suit metric outside | Flange size | Seal Type | Working temp | Output Signal mA | Litres per Minute | Mpa Working pressure | Micron Rating for filtration | To Suit | Notes | Length MM | Hole Centres in mm | Height in MM | Port Size | Oem Code | Element Media | Old Ref | Material | Model | Box QTY | Bypass in PSIG | Float Material | Flow rate in cubic | Litres per second | ElemnentSize | Voltage | Max Litres per Minute | Wattage | OD In INCHES | Max working pressure | Size | Max Pressure for rotation | Displacement cm6127 | Volume | Function | To suit Cartridge | Ratio | No. of Stations | Type | Frame Size | Group Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| LF1002 | Water BSPT, Inlet | 3/4" | 0.010-0.20 | Oil | S/S | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF1009 | Water BSPT, Inlet | 3/4" | 0.1-0.9 | Oil | Acetal | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF1090 | Water BSPT, Inlet | 3/4" | 1.0-9.0 | Oil | S/S | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF2020 | Water BSPT, Inlet | 3/4" | 0.2-2.0 | Water | Acetal | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF2100 | Water BSPT, Inlet | 3/4" | 1.5-10.0 | Water | S/S | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF2220 | Water BSPT, Inlet | 3/4" | 2.0-22.0 | Water | S/S | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF3007E | Water BSPT, Inlet | 1/4" | 1-7.0 | Air | Acetal | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF3050E | Water BSPT, Inlet | 3/4" | 10-50.0 | Air | Acetal | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF3135E | Water BSPT, Inlet | 3/4" | 20-135.0 | Air | Acetal | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF3330E | Water BSPT, Inlet | 3/4" | 1.5-5.5l/sec | Air | S/S | ||||||||||||||||||||||||||||||||||||||||||||||||||
| LF3720E | Water BSPT, Inlet | 3/4" | 1-12.0 l/sec | Air | S/S |
