Pumps

Hydraulics Hydraulic Hand Pumps

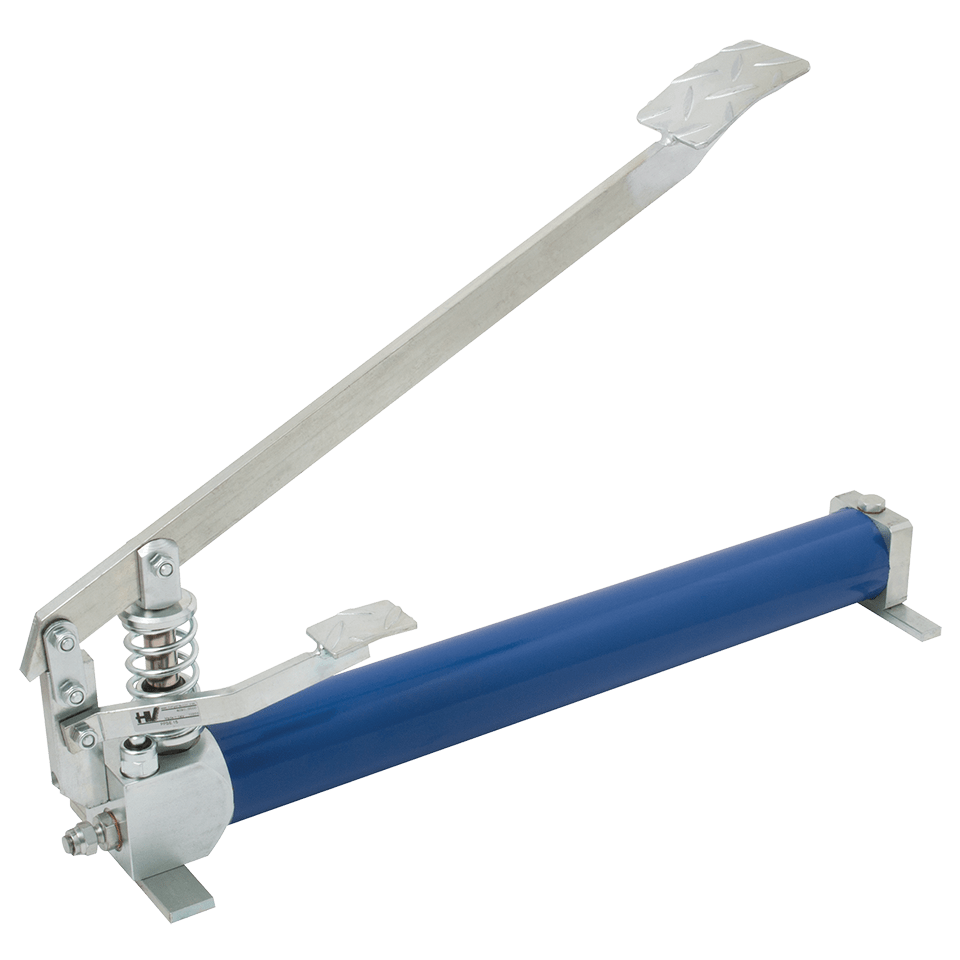

Single Acting Foot Pump with 1.5 Litre Reservoir
Specifications
Single acting pump for single acting cylinder. Specification: • White zinc-plated steel body • Piston treated with niploy • White zinc-plated external parts • Release lever Maximum Working Pressure: 220 bar
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4659 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
HFP-01 Single Acting Foot Pump with 1.5 Litre Reservoir 1/4” Single Acting Cylinder 15
HHP-01 Double Acting Pump with Release Knob, Side Mount 1/2” Single Acting Cylinder Wall Mount 20
HHP-02 Double Acting Pump with Release Knob, Bottom Mount 1/2” Single Acting Cylinder Wall Mount 50
HHP-03 Double Acting Pump with Release Knob & Pressure Relief Valve 3/8” Single Acting Cylinder Tank Mount 25
HHP-04 Double Acting Pump with 4/3 Diverter Valve & Pressure Relief Valve 3/8” Double Acting Cylinder Tank Mount 25
HHP-05 Double Acting Pump with 4/3 Diverter Valve, PRV & Dual PO Check Valve 3/8” Double Acting Cylinder Tank Mount 25
