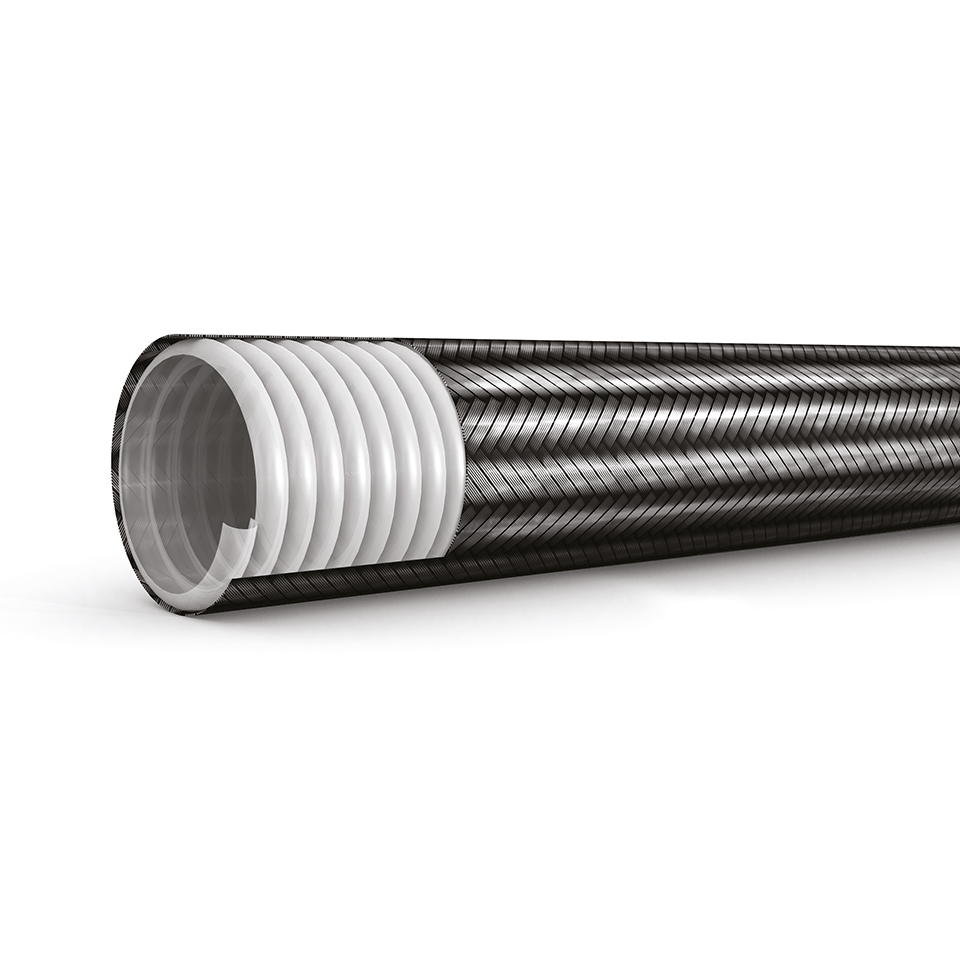

Convoluted PTFE Hose
Construction:
• Inner tube: convoluted PTFE Tefl on
• Cover: AISI 304 stainless steel
single wire braid
Application:
Hose range is ideal for fl uid and gas
systems, chemical transfer, steam, air,
water solvents and suction
applications. It is abrasion resistant
and can be used with most types of
industrial lubricants, coolants, acids,
oils and solvents. An exceptionally
versatile hose, it can do the job of
many different hose types, helping to
minimise stocks. Burst pressure
exceeds three times working pressure.
Temperature Range: -54°C to +204°C
Your item(s) have been added to your shopping basket
Convoluted PTFE Hose
- Technical specs
| Part number | Variation name | Outside diameter in millimetres | Bend radius in millimetres | Burst pressure in bar | Maximum gauge pressure in bar | Burst pressure | Vacuum level in inches of mercury | Thread size | Thread size in millimetres | Thread size in UNF | Size of inlet thread | Size of outlet thread | To suit internal diameter of hose | To suit metric internal diameter of hose | To suit metric outside | Flange size | Seal Type | Working temp | Output Signal mA | Litres per Minute | Mpa Working pressure | Micron Rating for filtration | To Suit | Notes | Length MM | Hole Centres in mm | Height in MM | Port Size | Oem Code | Element Media | Old Ref | Material | Model | Box QTY | Bypass in PSIG | Float Material | Flow rate in cubic | Litres per second | ElemnentSize | Voltage | Max Litres per Minute | Wattage | OD In INCHES | Max working pressure | Size | Max Pressure for rotation | Displacement cm202 | Volume | Function | To suit Cartridge | Ratio | No. of Stations | Type | Frame Size | Group Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100SCX-04 | 100SCX | 9.6 | 18 | 172.0 | 28.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 100SCX-06 | 100SCX | 13.6 | 20 | 138.0 | 28.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 100SCX-08 | 100SCX | 18.5 | 25 | 103.0 | 28.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 100SCX-10 | 100SCX | 22.9 | 51 | 83.0 | 28.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 100SCX-12 | 100SCX | 25.5 | 64 | 69.0 | 28.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 100SCX-16 | 100SCX | 34.1 | 89 | 46.0 | 20.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 100SCX-20 | 100SCX | 40.6 | 125 | 34.0 | 12.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 100SCX-24 | 100SCX | 48.5 | 152 | 30.0 | 10.00 | ||||||||||||||||||||||||||||||||||||||||||||||||||
| 100SCX-32 | 100SCX | 61.4 | 200 | 23.0 | 5.00 |
