Hot Water, Single Wire

HTP 15, Black
Specifications

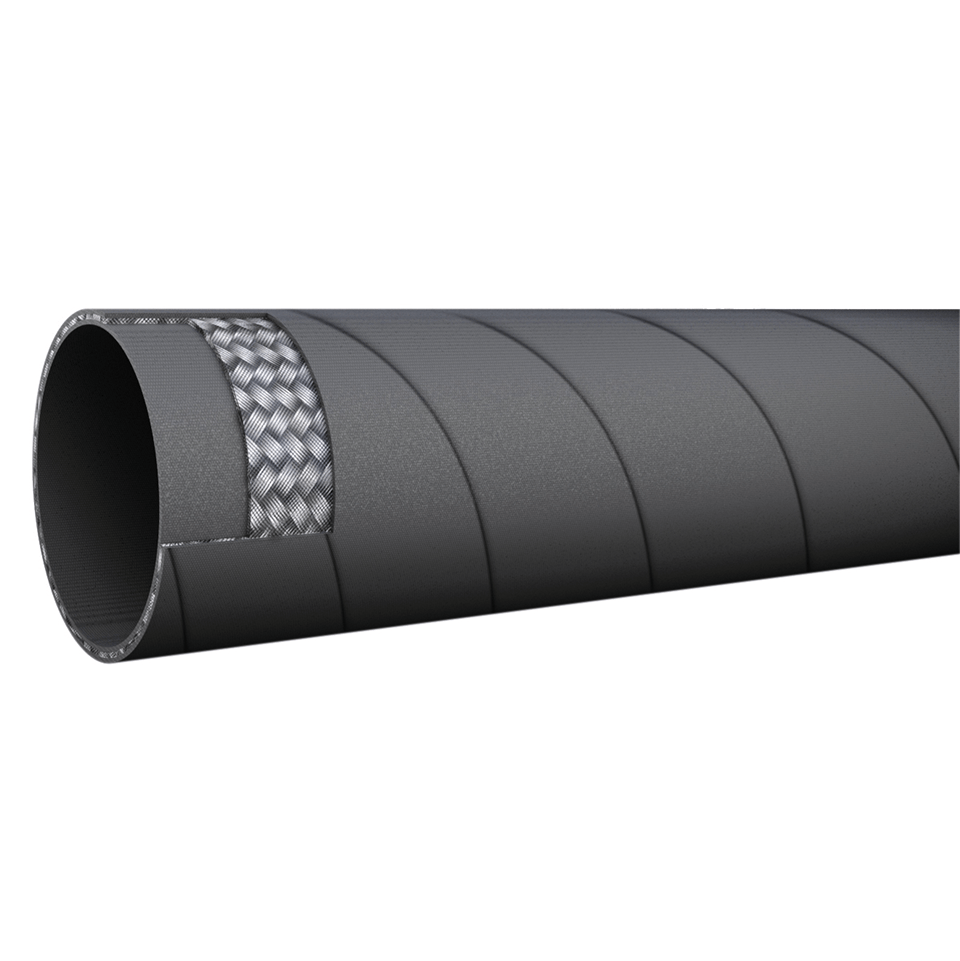

Construction: • Inner tube: seamless synthetic rubber, resistant to high temperatures and detergent fluid • Reinforcement: one braid of high-tensile steel wire • Cover: synthetic rubber, pin-pricked, resistant to abrasion, oil, ozone and weathering • Colours available: black (B), blue (K), grey (G) Application: Hose range suitable for water cleaning applications and a wide range of benefits such as high flexibility, low weight, high abrasion resistance, small bend radius and excellent resistance to the most common detergent solutions. The constant working pressure through all sizes offers easy choice, avoiding any kind of misunderstanding. Burst pressure exceeds four times working pressure. Temperature Range: -40°C to +150°C
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm182 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
HTP15B-04 HTP 15, Black 13.5 100 0.17 150.0
HTP15B-05 HTP 15, Black 14.5 110 0.19 150.0
HTP15B-06 HTP 15, Black 16.9 120 0.22 150.0
HTP15B-08 HTP 15, Black 20.5 160 0.33 150.0
HTP21B-04 HTP 21, Black 13.4 100 0.21 210.0
HTP21B-05 HTP 21, Black 15.0 110 0.26 210.0
HTP21B-06 HTP 21, Black 17.4 120 0.34 210.0
HTP21B-08 HTP 21, Black 20.6 160 0.41 180.0
