1620 Thread Adaptors

Hydraulics Minimess® Test Points & Adaptors

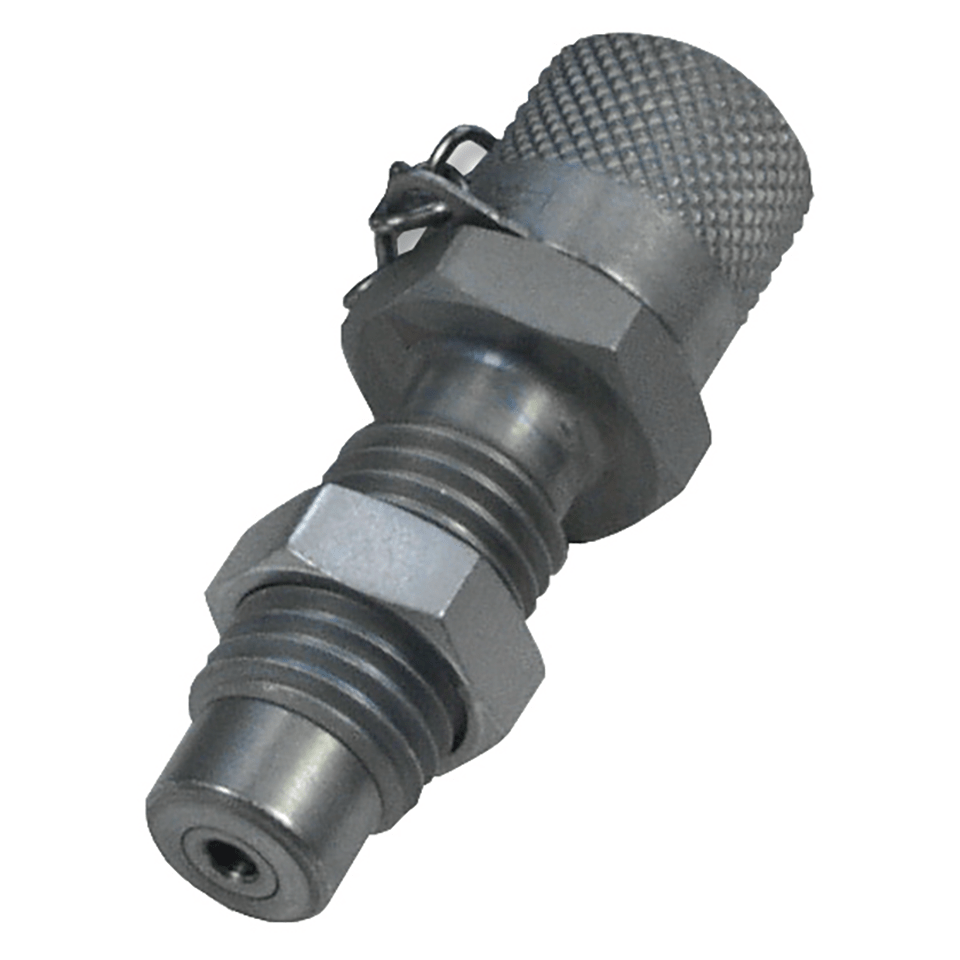

Male x Male Bulkhead
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm5493 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
2103-04-16.00 Male x Male Bulkhead 630 M 16 X 2
2103-04-16.00_1 1620 to Pressure Gauge, Direct Connection 630 ISO 228-G 1/4”
2103-05-11.00 1620 to Pressure Gauge Connection for Bulkhead Fitting, without Return Valve 630 ISO 228-G 1/4”
2103-05-12.00 1620 to Pressure Gauge Connection for Bulkhead Fitting, without Return Valve 630 ISO 228-G 1/2”
2103-05-23.00 1620 to Pressure Gauge Connection for Bulkhead Fitting, without Return Valve 630 1/4” NPT
2103-07-12.62 1620 to Pressure Gauge, Direct Connection 630 ISO 228-G 1/2”
2103-07-23.62 1620 to Pressure Gauge, Direct Connection 630 1/4” NPT
2103-07-42.62 Test Thread Changeover Adaptors M12 X 1.5
2103-07-42.62_1 Test Thread Changeover Adaptors M16X2
2103-07-42.62_2 Test Thread Changeover Adaptors M16 X 1.5
2103-07-42.62_3 Test Thread Changeover Adaptors M16X2
2103-07-42.62_4 Test Thread Changeover Adaptors 5/8" BSF (HSP)
2103-85-21.00 Standpipe to JIC Female, 37º Cone Seal 600 7/16-20 UNF
2103-85-22.00 Standpipe to JIC Female, 37º Cone Seal 420 1/2-20 UNF
2103-85-23.00 Standpipe to JIC Female, 37º Cone Seal 315 9/16-18 UNF
2103-85-24.00 Standpipe to JIC Female, 37º Cone Seal 315 3/4-16 UNF
2115-22-34.00 1620 to G 1/4” BSP Male, 90° Swivel 630 ISO 228-G 1/4”
2146-01-00.00 Male x Male Hose Adaptor, without Return Valve 630 M16X2
