7000 Series, Caps & Plugs

Hydraulics Quick Release Couplings

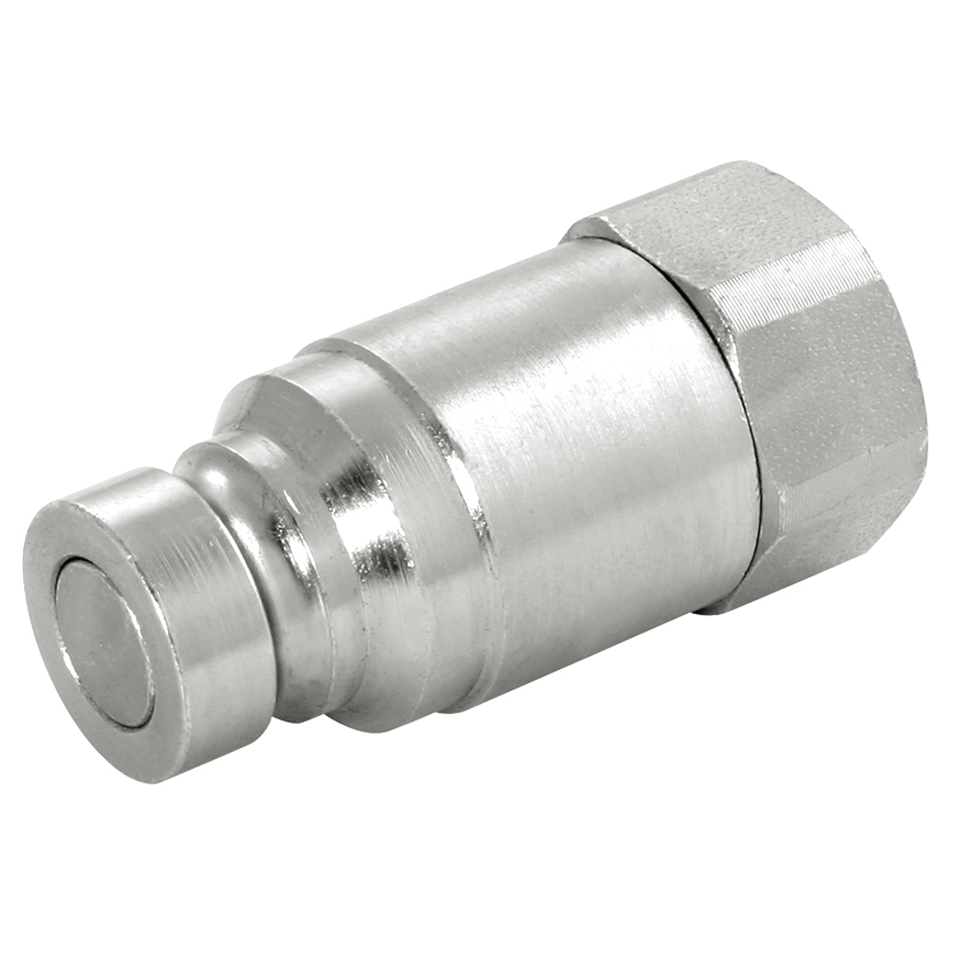

Male Tip Probe, BSP
  • Technical specs
Part number Variation name Outside diameter in millimetres Bend radius in millimetres Burst pressure in bar Maximum gauge pressure in bar Burst pressure Vacuum level in inches of mercury Thread size Thread size in millimetres Thread size in UNF Size of inlet thread Size of outlet thread To suit internal diameter of hose To suit metric internal diameter of hose To suit metric outside Flange size Seal Type Working temp Output Signal mA Litres per Minute Mpa Working pressure Micron Rating for filtration To Suit Notes Length MM Hole Centres in mm Height in MM Port Size Oem Code Element Media Old Ref Material Model Box QTY Bypass in PSIG Float Material Flow rate in cubic Litres per second ElemnentSize Voltage Max Litres per Minute Wattage OD In INCHES Max working pressure Size Max Pressure for rotation Displacement cm4276 Volume Function To suit Cartridge Ratio No. of Stations Type Frame Size Group Number
7001-04 Male Tip Probe, BSP 400 1/4” 1/4”
7001-06 Male Tip Probe, BSP 350 3/8” 3/8”
7001-06-08 Male Tip Probe, BSP 350 1/2” 3/8”
7001-12 Male Tip Probe, BSP 350 3/4” 3/4”
7001-16 Male Tip Probe, BSP 350 1” 1”
7001-20 Male Tip Probe, BSP 260 1.1/4” 1.1/4”
7001-24 Male Tip Probe, BSP 300 1.1/2” 1.1/2”
7002-04 Body Carrier, BSP 400 1/4” 1/4”
7002-06 Body Carrier, BSP 350 3/8” 3/8”
7002-06-08 Body Carrier, BSP 350 1/2” 3/8”
7002-12 Body Carrier, BSP 350 3/4” 3/4”
7002-16 Body Carrier, BSP 350 1” 1”
7002-20 Body Carrier, BSP 260 1.1/4” 1.1/4”
7002-24 Body Carrier, BSP 300 1.1/2” 1.1/2”
SS/7001-04 Male Tip Probe, Stainless Steel, BSP 250 1/4” 1/4”
SS/7001-06 Male Tip Probe, Stainless Steel, BSP 250 3/8” 3/8”
SS/7001-06-08 Male Tip Probe, Stainless Steel, BSP 250 1/2” 3/8”
SS/7001-08 Male Tip Probe, Stainless Steel, BSP 200 1/2” 1/2”
SS/7001-12 Male Tip Probe, Stainless Steel, BSP 200 3/4” 3/4”
SS/7001-16 Male Tip Probe, Stainless Steel, BSP 160 1” 1”
SS/7001-20 Male Tip Probe, Stainless Steel, BSP 125 1.1/4” 1.1/4”
SS/7002-04 Body Carrier, Stainless Steel, BSP 250 1/4” 1/4”
SS/7002-06 Body Carrier, Stainless Steel, BSP 250 3/8” 3/8”
SS/7002-06-08 Body Carrier, Stainless Steel, BSP 250 1/2” 3/8”
SS/7002-08 Body Carrier, Stainless Steel, BSP 200 1/2” 1/2”
SS/7002-12 Body Carrier, Stainless Steel, BSP 200 3/4” 3/4”
SS/7002-16 Body Carrier, Stainless Steel, BSP 160 1” 1”
SS/7002-20 Body Carrier, Stainless Steel, BSP 125 1.1/4” 1.1/4”
