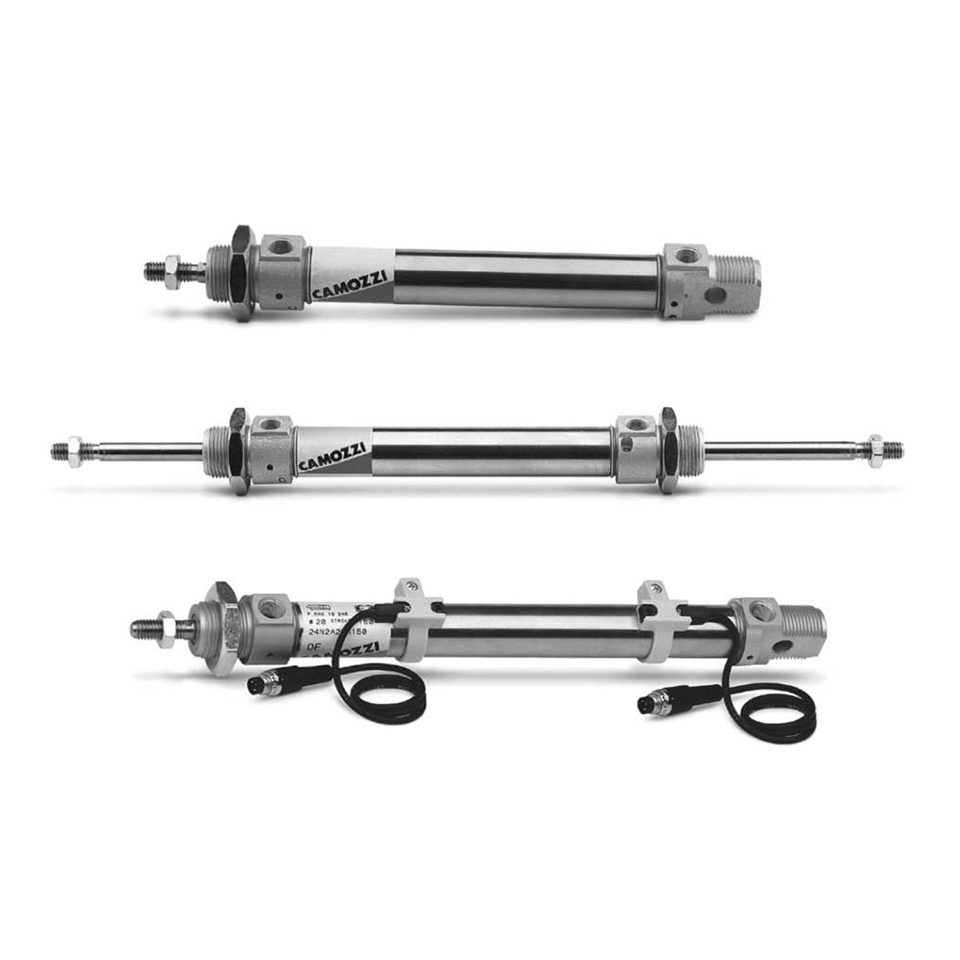

Series 24, Double Acting Cylinders

Pneumatic & Vacuum Equipment Cylinders
M5, Ø16mm
  • Technical specs
Part number Variation name Cylinder stroke length in mm
24N2A16A010 M5, Ø16mm 10
24N2A16A025 M5, Ø16mm 25
24N2A16A040 M5, Ø16mm 40
24N2A16A050 M5, Ø16mm 50
24N2A16A080 M5, Ø16mm 80
24N2A16A100 M5, Ø16mm 100
24N2A16A125 M5, Ø16mm 125
24N2A16A160 M5, Ø16mm 160
24N2A16A200 M5, Ø16mm 200
24N2A20A010 G1/8", Ø20mm 10
24N2A20A025 G1/8", Ø20mm 25
24N2A20A040 G1/8", Ø20mm 40
24N2A20A050 G1/8", Ø20mm 50
24N2A20A080 G1/8", Ø20mm 80
24N2A20A100 G1/8", Ø20mm 100
24N2A20A125 G1/8", Ø20mm 125
24N2A20A160 G1/8", Ø20mm 160
24N2A20A200 G1/8", Ø20mm 200
24N2A20A250 G1/8", Ø20mm 250
24N2A20A300 G1/8", Ø20mm 300
24N2A25A010 G1/8", Ø25mm 10
24N2A25A025 G1/8", Ø25mm 25
24N2A25A040 G1/8", Ø25mm 40
24N2A25A050 G1/8", Ø25mm 50
24N2A25A080 G1/8", Ø25mm 80
24N2A25A100 G1/8", Ø25mm 100
24N2A25A125 G1/8", Ø25mm 125
24N2A25A160 G1/8", Ø25mm 160
24N2A25A200 G1/8", Ø25mm 200
24N2A25A250 G1/8", Ø25mm 250
24N2A25A300 G1/8", Ø25mm 300
24N2A25A320 G1/8", Ø25mm 320
24N2A25A400 G1/8", Ø25mm 400
24N2A25A500 G1/8", Ø25mm 500
