Piston Rod Mountings

Pneumatic & Vacuum Equipment ISO & VDMA Mountings to suit Cylinders

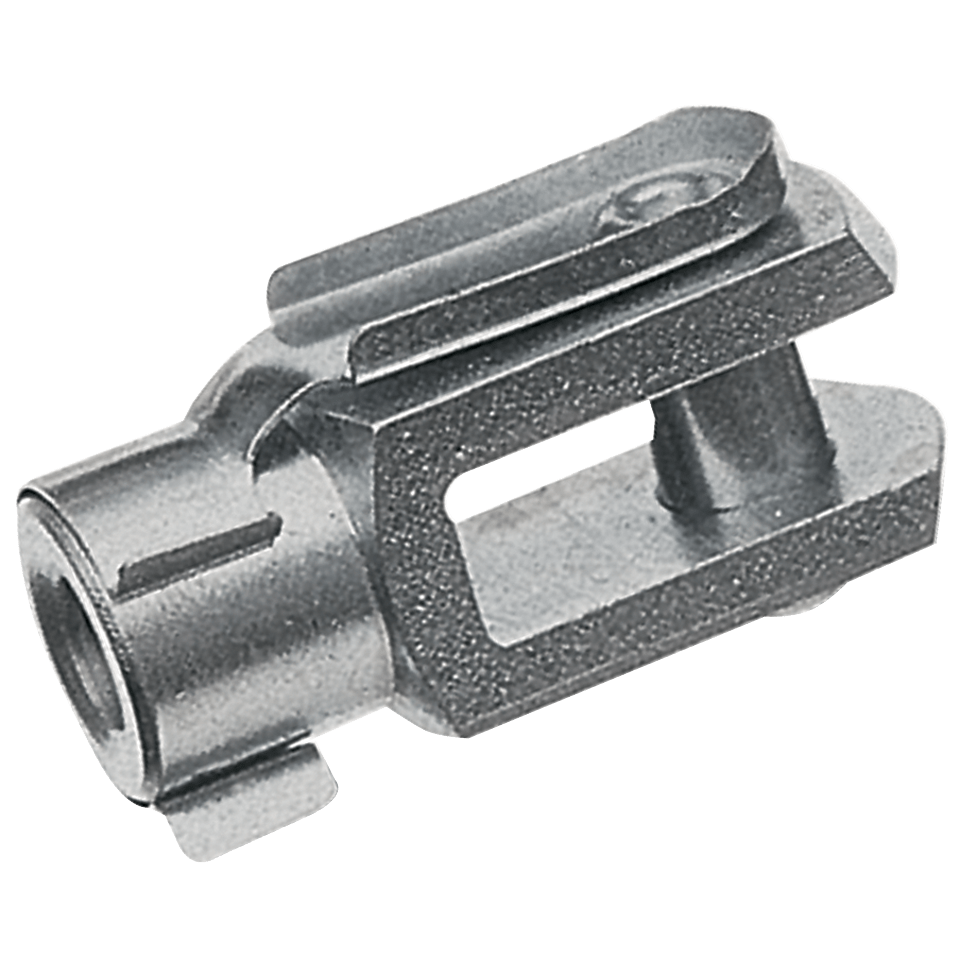

Piston Rod Fork Ends, Mod G
  • Technical specs
Part number Variation name Bore size in mm To suit unit
G 12/16 Piston Rod Fork Ends, Mod G 12/16 24
G 160/200 Piston Rod Fork Ends, Mod G 160/200 40
G 20 Piston Rod Fork Ends, Mod G 20 24
G 25/32 Piston Rod Fork Ends, Mod G 25/32 24,60,61,63
G 40 Piston Rod Fork Ends, Mod G 40 60,61,63
G 41 125 Piston Rod Fork Ends, Mod G 125 60,61,63
G 50/63 Piston Rod Fork Ends, Mod G 50/63 60,61,63
G 80/100 Piston Rod Fork Ends, Mod G 80/100 60,61,63
GA 12/16 Piston Rod Swivel Ball Ends, Mod GA 12/16 24
GA 160/200 Piston Rod Swivel Ball Ends, Mod GA 160/200 40
GA 20 Piston Rod Swivel Ball Ends, Mod GA 20 24
GA 25/32 Piston Rod Swivel Ball Ends, Mod GA 25/32 60,61,63
GA 40 Piston Rod Swivel Ball Ends, Mod GA 40 60,61,63
GA 41 125 Piston Rod Swivel Ball Ends, Mod GA 125 60,61,63
GA 50/63 Piston Rod Swivel Ball Ends, Mod GA 50/63 60,61,63
GA 8/10 Piston Rod Swivel Ball Ends, Mod GA 8/10 24
GA 80/100 Piston Rod Swivel Ball Ends, Mod GA 80/100 60,61,63
GK 125 Self Aligning Rod, Mod GK 125 60,61,63
GK 160 200 Self Aligning Rod, Mod GK 160/200 40
GK 25 32 Self Aligning Rod, Mod GK 25/32 60,61,63
GK 40 Self Aligning Rod, Mod GK 40 60,61,63
GK 50 63 Self Aligning Rod, Mod GK 50/63 60,61,63
GK 80 100 Self Aligning Rod, Mod GK 80/100 60,61,63
GY 32 Piston Rod Socket Joint, Mod GY 32 60,61,63
GY 40 Piston Rod Socket Joint, Mod GY 40 60,61,63
GY 50 63 Piston Rod Socket Joint, Mod GY 50/63 60,61,63
GY 80 100 Piston Rod Socket Joint, Mod GY 80/100 60,61,63
U 12/16 Piston Rod Lock Nut, Mod U 12/16 24
U 160/200 Piston Rod Lock Nut, Mod U 16 40
U 20 Piston Rod Lock Nut, Mod U 20 24
U 25/32 Piston Rod Lock Nut, Mod U 25/32 24,60,61,63
U 40 Piston Rod Lock Nut, Mod U 40 60,61,63
U 41 125 Piston Rod Lock Nut, Mod U 125 60,61,63
U 50/63 Piston Rod Lock Nut, Mod U 50/63 60,61,63
U 80/100 Piston Rod Lock Nut, Mod U 80/100 60,61,63
