Roundline Mountings

Pneumatic & Vacuum Equipment Roundline Cylinders & Mountings

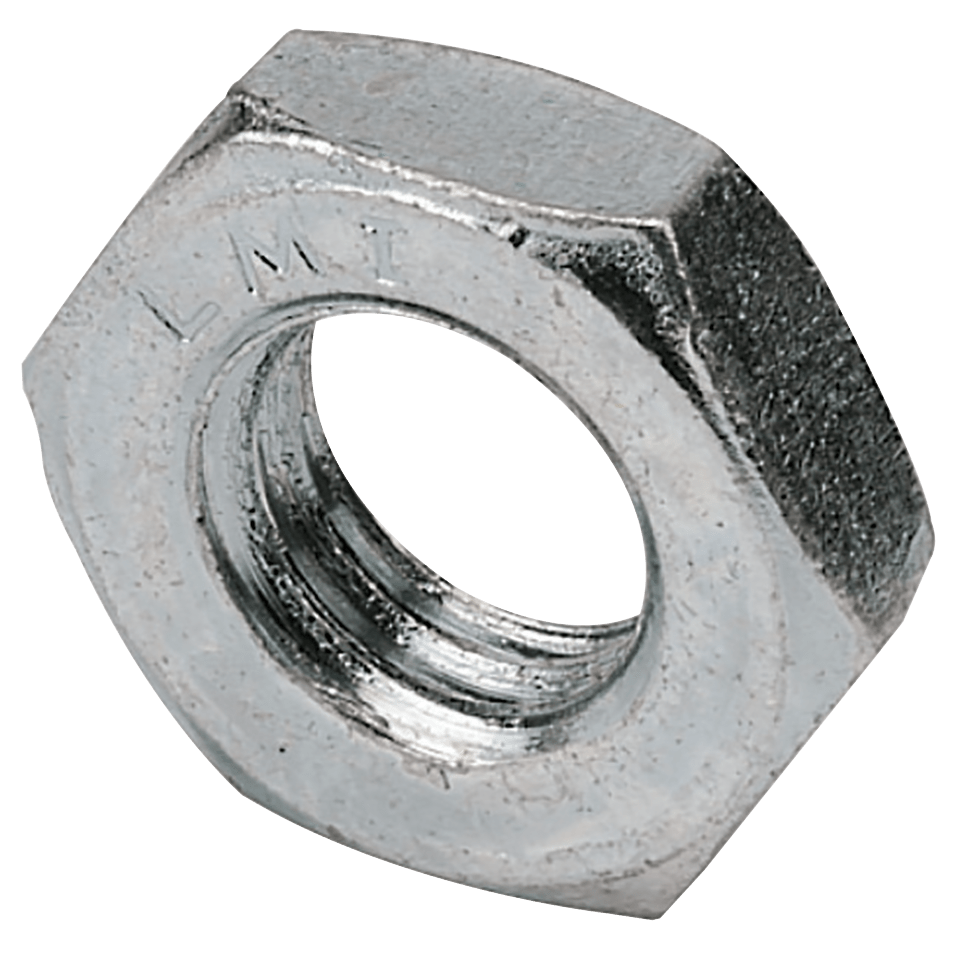

Piston Rod Locknut
  • Technical specs
Part number Variation name Bore size in mm
M/P1501/60 Piston Rod Locknut 20
M/P1501/89 Piston Rod Locknut 25 & 32
M/P1501/90 Piston Rod Locknut 40
QM/33/032/22 Switch Mounting Bracket (QM33) 32
QM/33/040/22 Switch Mounting Bracket (QM33) 40
QM/34/S/5 Magnetic Switch (QM33) 32-40
QM/57016/25 Female Piston Rod Clevis 16
QM/57020/25 Female Piston Rod Clevis 20
QM/57025/24 Clevis Foot Mounting 25
QM/57025/25 Female Piston Rod Clevis 25
QM/57032/25 Female Piston Rod Clevis 32
QM/57040/24 Clevis Foot Mounting 40
QM/8040/32 Piston Rod Eye 40
QM/946 Clevis Foot Mounting 16
