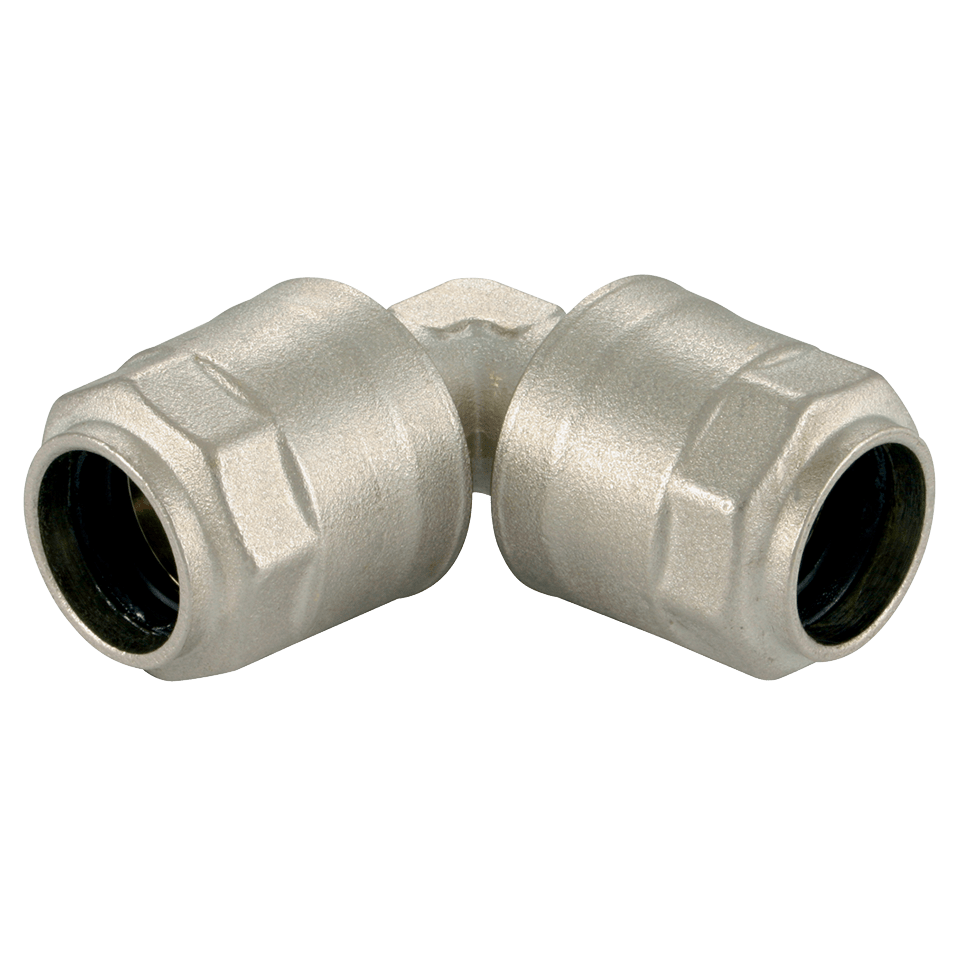

Elbows

Aluminium Ring Main System Ring Main Systems
Equal, 20mm-63mm
  • Technical specs
Part number Variation name Outside diameter in mm
9013000001 Equal, 20mm-63mm 20
9013000002 Equal, 20mm-63mm 25
9013000003 Equal, 20mm-63mm 32
9013000004 Equal, 20mm-63mm 40
9013000005 Equal, 20mm-63mm 50
9013000006 Equal, 20mm-63mm 63
9013000008 Equal, 110mm 110
9014000001 Equal 45°, 20mm-63mm 20
9014000002 Equal 45°, 20mm-63mm 25
9014000003 Equal 45°, 20mm-63mm 32
9014000004 Equal 45°, 20mm-63mm 40
9014000005 Equal 45°, 20mm-63mm 50
9014000006 Equal 45°, 20mm-63mm 63
9015000001 Male Thread, BSPT 20
9015000002 Male Thread, BSPT 25
9015000003 Male Thread, BSPT 32
9015000004 Male Thread, BSPT 40
9015000005 Male Thread, BSPT 50
9015000006 Male Thread, BSPT 63
9016000001 Female Thread, BSPP 20
9016000002 Female Thread, BSPP 25
9016000003 Female Thread, BSPP 32
9016000004 Female Thread, BSPP 40
9016000005 Female Thread, BSPP 50
9016000006 Female Thread, BSPP 63
9060000001 Bracketed, Female BSPP 20
9060000002 Bracketed, Female BSPP 25
9060000003 Bracketed, Female BSPP 32
