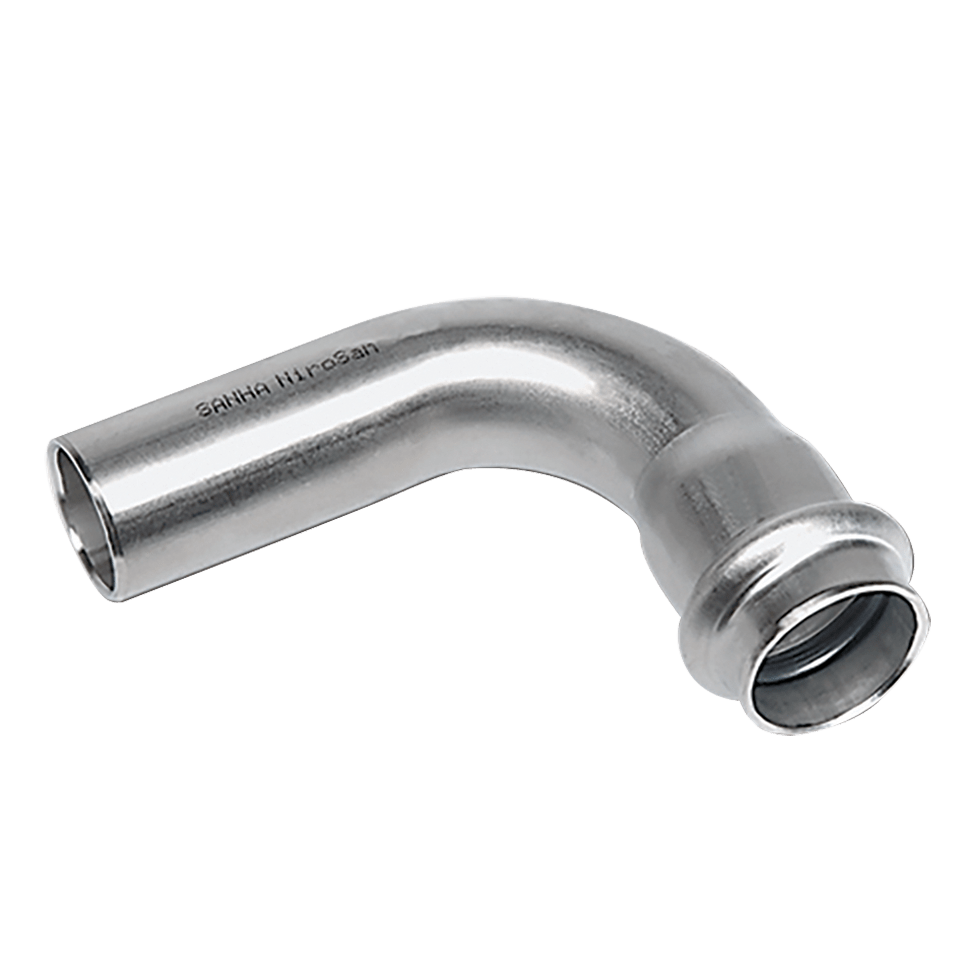

Series 9000, 90° Elbows

Ring Main Systems NiroSan® Stainless Steel Press Fit Piping System
Female x Male Plain End
  • Technical specs
Part number Variation name Inside diameter mm Outside diameter in mm
69001A15 Female x Male Plain End 15 15
69001A22 Female x Male Plain End 22 22
69001A28 Female x Male Plain End 28 28
69001A35 Female x Male Plain End 35 35
69001A42 Female x Male Plain End 42 42
69001A54 Female x Male Plain End 54 54
69001L15 Female x Male Plain End, Long 15 15
69001L22 Female x Male Plain End, Long 22 22
69001L28 Female x Male Plain End, Long 28 28
69001L35 Female x Male Plain End, Long 35 35
69001L42 Female x Male Plain End, Long 42 42
69001L54 Female x Male Plain End, Long 54 54
69002A15 Equal Female 15
69002A22 Equal Female 22
69002A28 Equal Female 28
69002A35 Equal Female 35
69002A42 Equal Female 42
69002A54 Equal Female 54
69002AG1512 Female x Male Thread, BSPT 15 1/2"
69002AG2234 Female x Male Thread, BSPT 22 3/4"
69002G1512 Female x Female Thread, BSPT 15 1/2"
69002G2234 Female x Female Thread, BSPT 22 3/4"
69090IG1512 Compact, Female x Female Thread, BSPT 15 1/2"
69090IG2234 Compact, Female x Female Thread, BSPT 22 3/4"
69092AG1512 Compact, Female x Male Thread, BSPT 15 1/2"
69092AG2234 Compact, Female x Male Thread, BSPT 22 3/4"
69092AG281 Compact, Female x Male Thread, BSPT 28 1"
