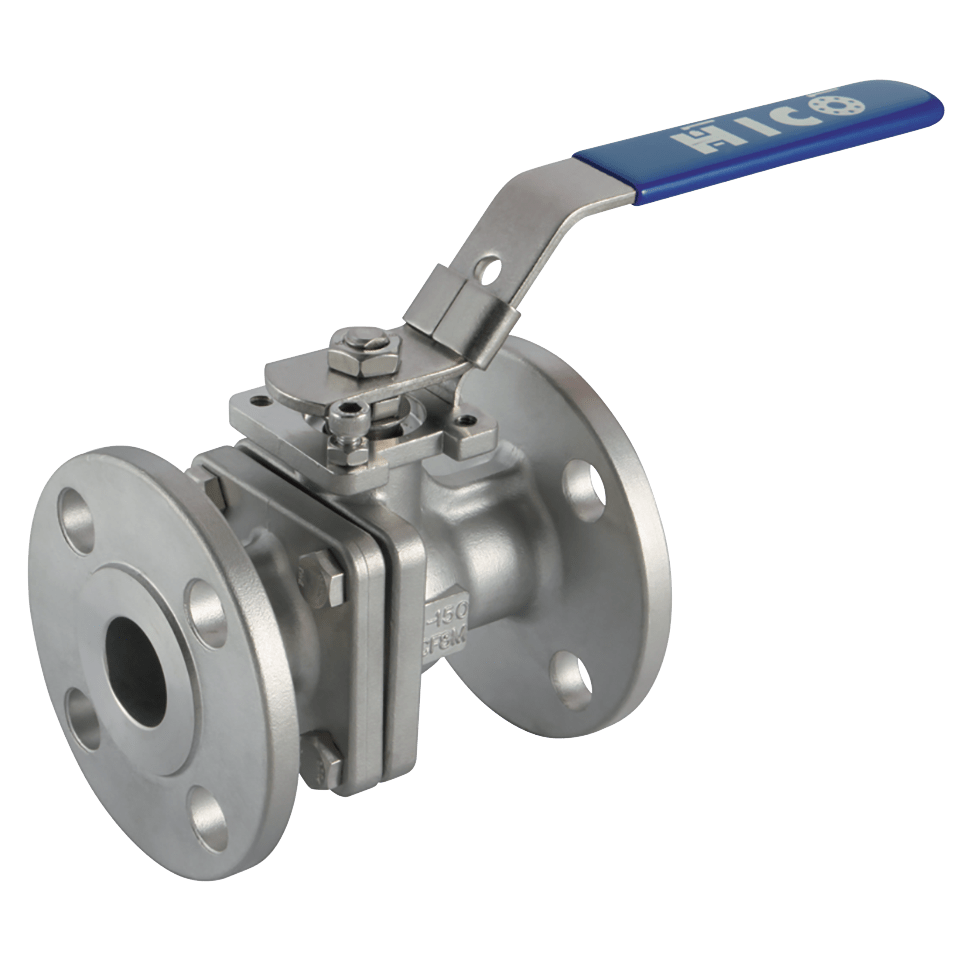

2 Piece Flanged Ball Valves
Your item(s) have been added to your shopping basket
2 Piece Flanged Ball Valves
- Technical specs
| Part number | Variation name | Flange size | Bore size in mm |
|---|---|---|---|
| ANBV-1 | ANSI 150 | 1" | 25 |
| ANBV-112 | ANSI 150 | 1.1/2" | 40 |
| ANBV-114 | ANSI 150 | 1.1/4" | 32 |
| ANBV-12 | ANSI 150 | 1/2" | 15 |
| ANBV-2 | ANSI 150 | 2" | 50 |
| ANBV-3 | ANSI 150 | 3" | 75 |
| ANBV-34 | ANSI 150 | 3/4" | 20 |
| ANBV-4 | ANSI 150 | 4" | 100 |
| ANBV-6 | ANSI 150 | 6" | 150 |
| PN16BV-1 | PN16 | 1" | 25 |
| PN16BV-112 | PN16 | 1.1/2" | 40 |
| PN16BV-114 | PN16 | 1.1/4" | 32 |
| PN16BV-12 | PN16 | 1/2" | 15 |
| PN16BV-2 | PN16 | 2" | 50 |
| PN16BV-3 | PN16 | 3" | 80 |
| PN16BV-34 | PN16 | 3/4" | 20 |
| PN16BV-4 | PN16 | 4" | 100 |
| PN16BV-5 | PN16 | 5" | 125 |
| PN16BV-6 | PN16 | 6" | 150 |
| PN16BV-8 | PN16 | 8" | 200 |
| PN40BV-112 | PN40 | 1.1/2" | 40 |
| PN40BV-212 | PN40 | 2.1/2" | 63 |
| PN40BV-3 | PN40 | 3" | 75 |
| PN40BV-4 | PN40 | 4" | 100 |
